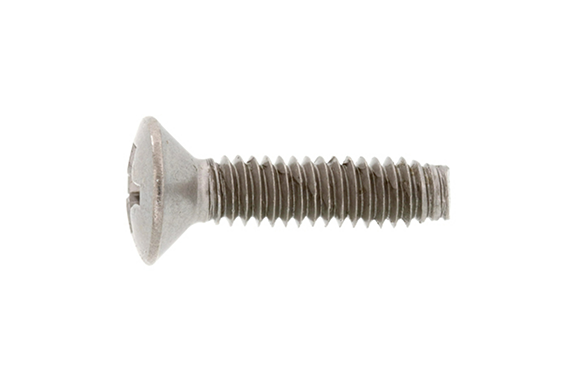

30-5002 Sunlock + Oval Head
Model: 30-5002
Dia range:M4～M4
Length range:12～25
SUS410.
Plain, GB (brown bronze).

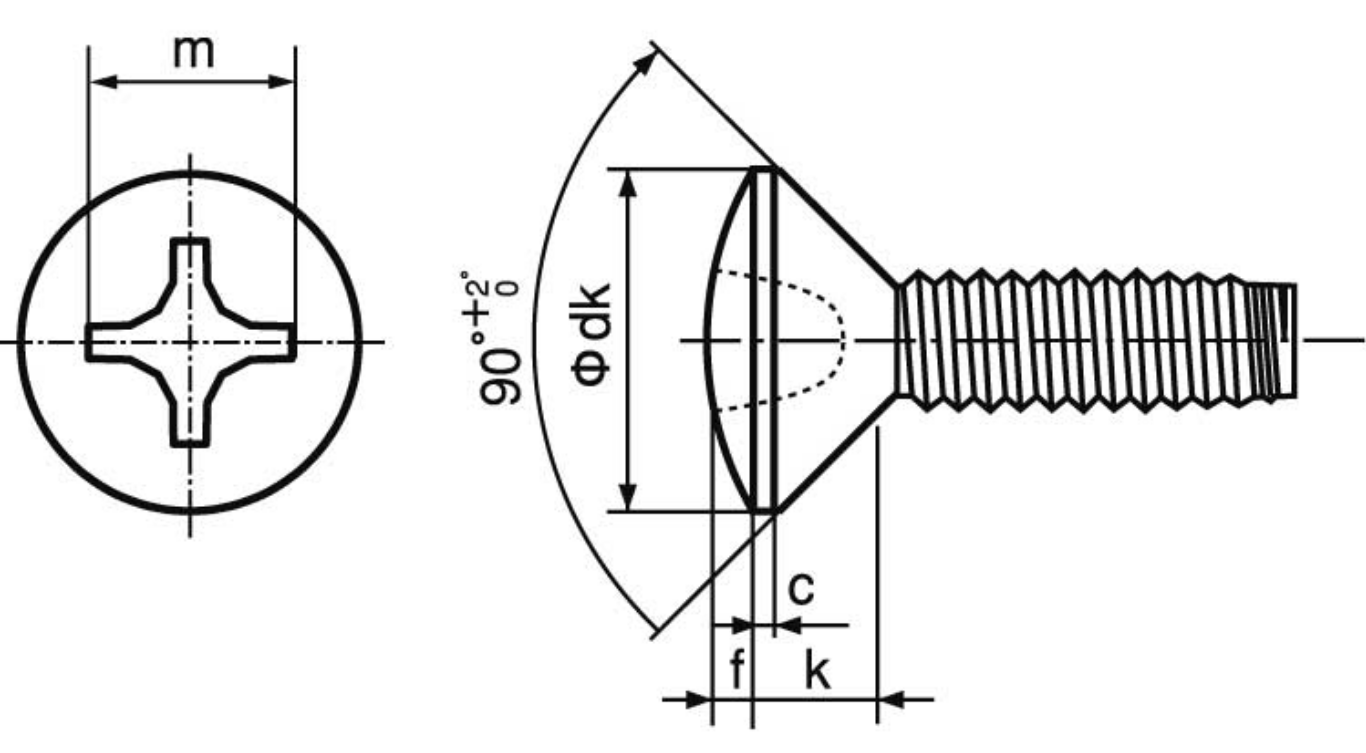

| Nominal thread size d | Pitch | Cross Recess Number | dk | k | C | f | k+f | m | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Dimension | Tolerance | Nominal Dimension | Tolerance | Approx. | Approx. | Nominal Dimension | Tolerance | Reference | |||
| M4 | 0.7 | 2 | 8 | 0 -0.5 | 2.3 | 0 -0.3 | 0.3 | 0.9 | 3.2 | 0 -0.5 | 4.5 |
