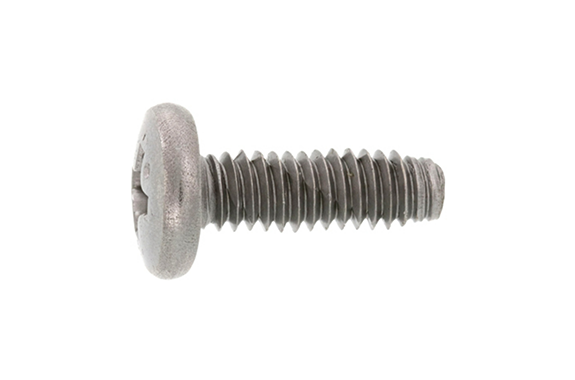

30-5004 Sunlock + Bind Head
Model: 30-5004
Dia range:M3～M4
Length range:8～14
SUS410.
Plain.

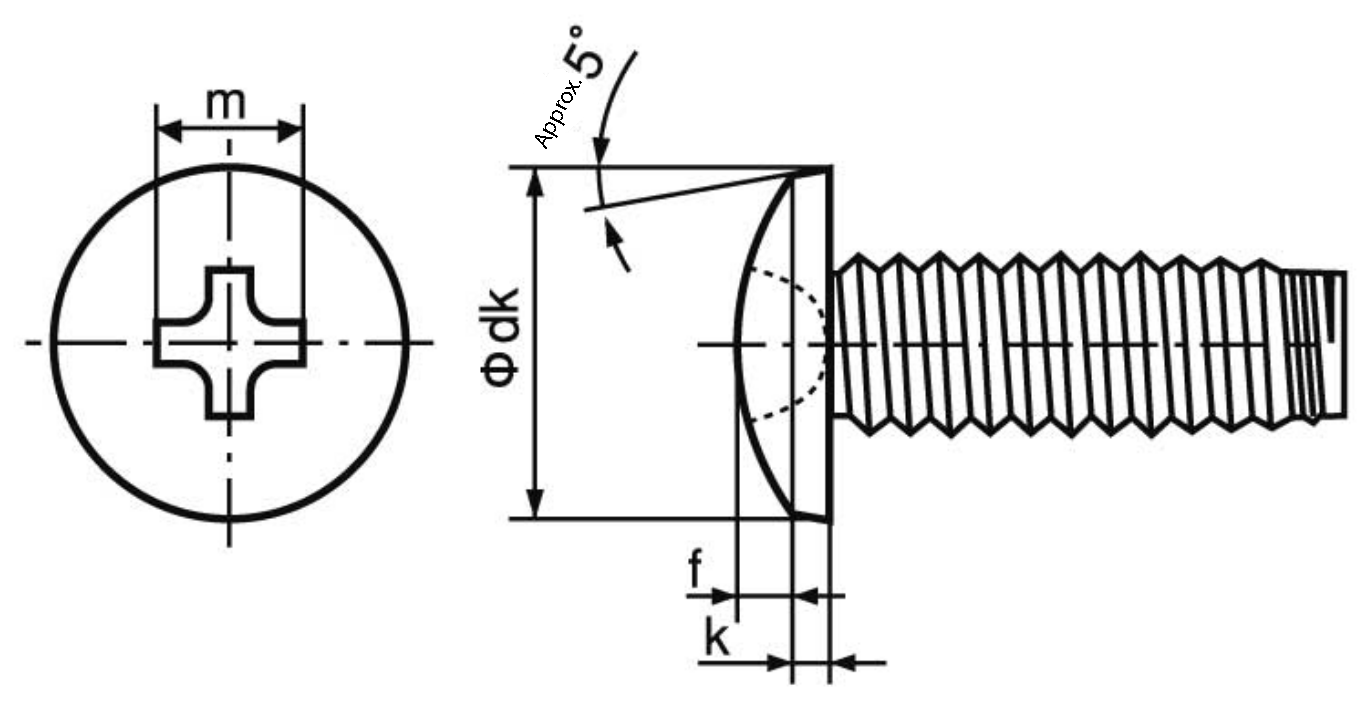

| Nominal thread size d | Pitch | dk | f+k | Cross Recess Number | ||
|---|---|---|---|---|---|---|
| Nominal Dimension | Tolerance | Nominal Dimension | Tolerance | m Max | ||
| 3 | 0.5 | 6.3 | 0 -0.5 | 1.90 | ±0.15 | 3.2 |
| 4 | 0.7 | 8.3 | 2.50 | 4.7 | ||
