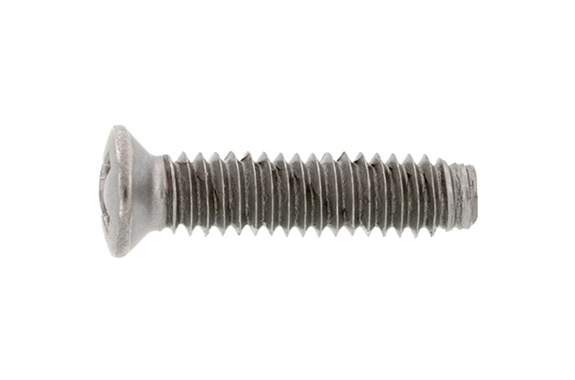

30-5007 Sunlock + Small Oval Head
Model: 30-5007
Dia range:M4～M4
Length range:8～25
SUS410.
Plain.
| Nominal thread d | Pitch | Cross-recess No. | dk | k | c | f | k+f | m | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard dimension | Tolerance | Standard dimension | Tolerance | Approx. | Approx. | Standard dimension | Tolerance | Reference | |||
| M4 | 0.7 | 2 | 6 | 0 -0.5 | 1.4 | 0 -0.3 | 0.25 | 0.7 | 2.1 | 0 -0.5 | 3.8 |
