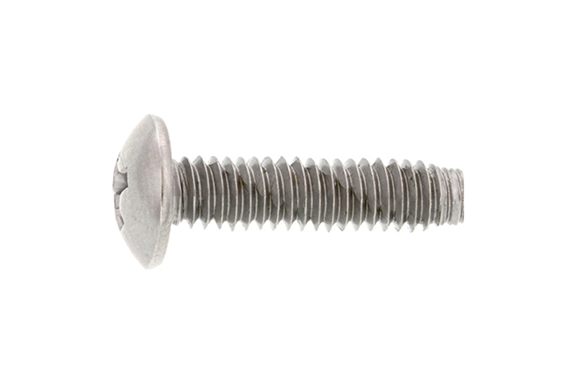

30-5008 Sunlock + Small Truss Head
Model: 30-5008
Dia range:M4～M4
Length range:6～35
SUS410.
Plain.

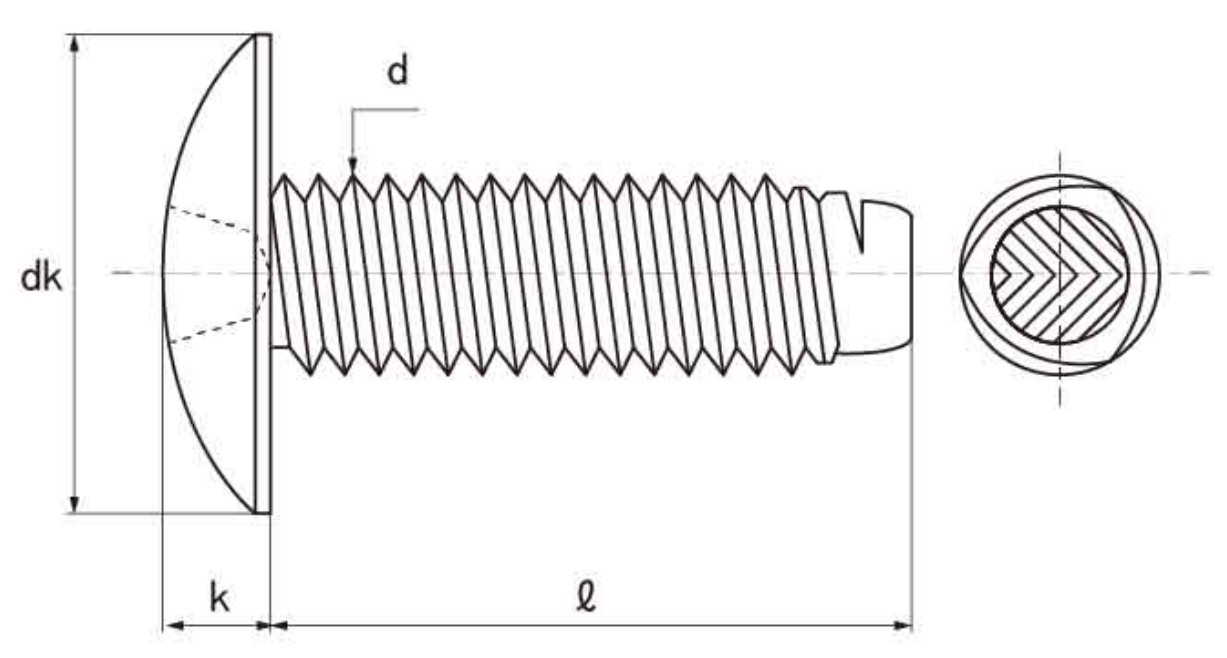

| Nominal thread diameter d | Pitch | Cross-recess number | dk | k | m | ||
|---|---|---|---|---|---|---|---|
| Standard dimension | Tolerance | Standard dimension | Tolerance | Reference | |||
| M4 | 0.7 | 2 | 8.1 | 0 -0.5 | 2.2 | ±0.15 | 4.0 |
