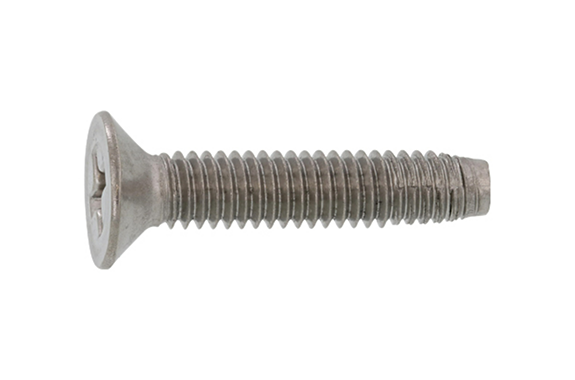

30-6001 Evatite + Flat Head
Model: 30-6001
Dia range:M3～M4
Length range:8～35
SUS410.
Plain.

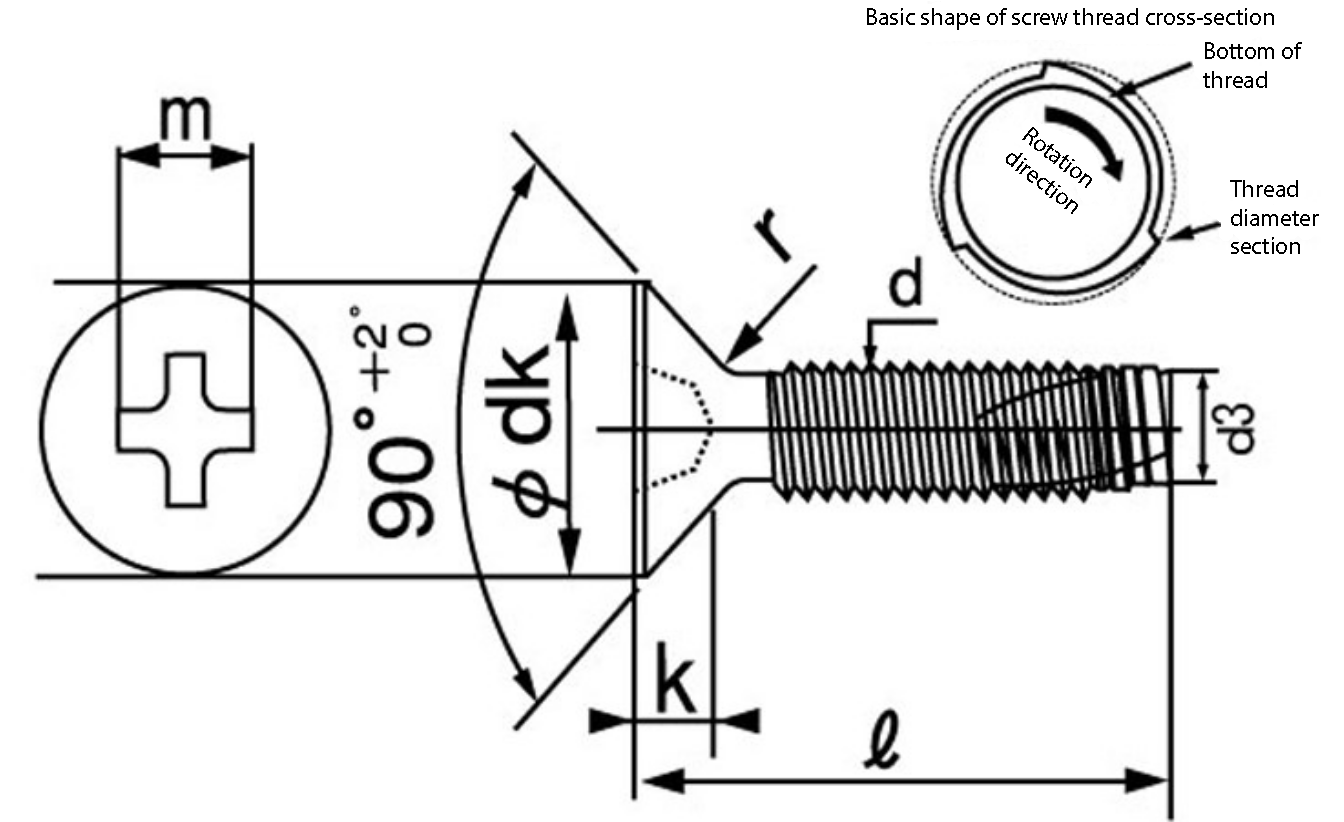

| Nominal thread size | P （Pitch） | d | d3 | dk | k | m | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Standard Dimension | Tolerance | Standard Dimension | Tolerance | Reference | ||
| 3 | 0.5 | 2.98 | 2.87 | 2.22 | 2.02 | 6 | 0 -0.5 | 1.75 | 0 -0.3 | 3.6 |
| 4 | 0.7 | 3.97 | 3.84 | 2.93 | 2.67 | 8 | 2.3 | 4.5 | ||
