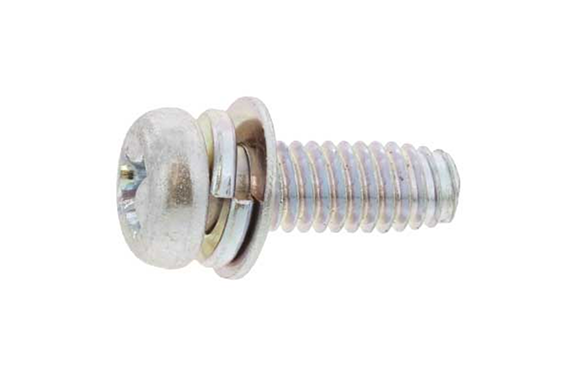

30-7004 Suncotite + S type Pan P=4
Model: 30-7004
Dia range:M3～M4
Length range:6～12
Iron (or standard).
Zinc Blue cr6+, Zinc Yellow cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black,…

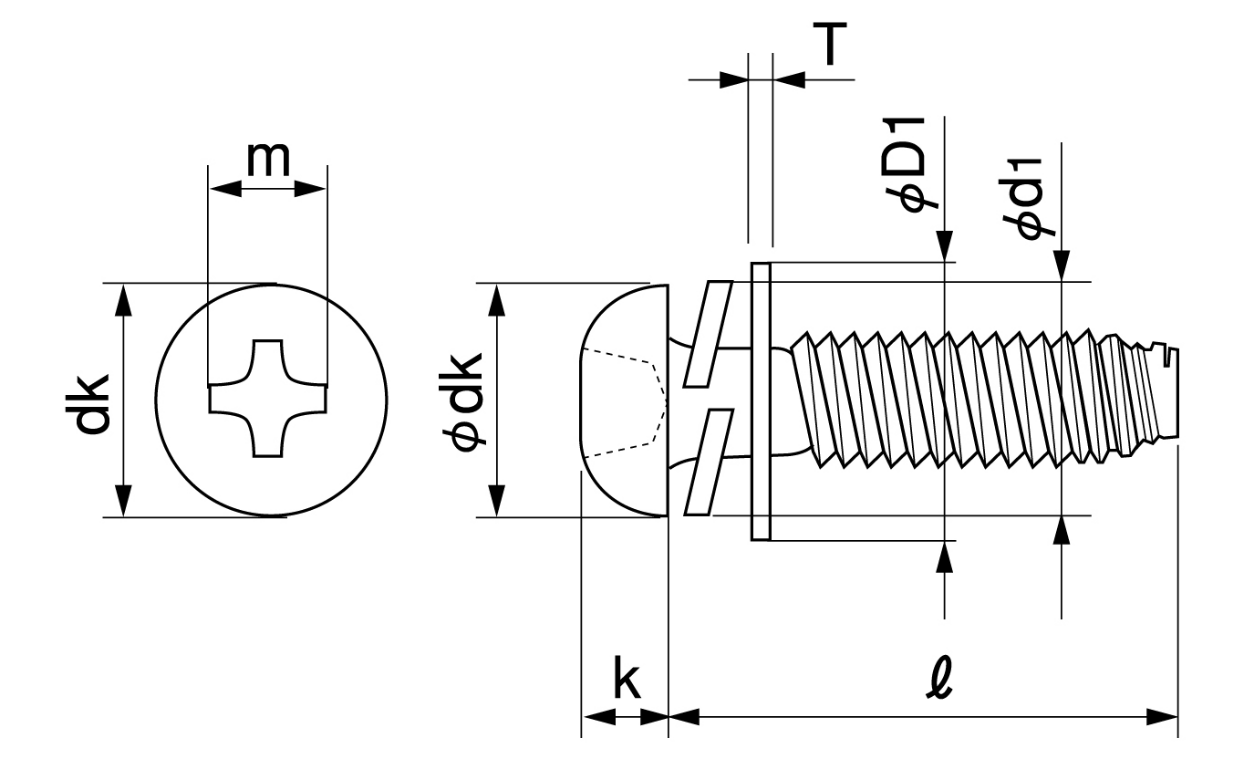

| Nominal thread size | 3 | 4 | |
|---|---|---|---|
| Head | Outer diameter dk | 5 5 0 -0.5 | 7.0 0 -0.5 |
| Height k | 2.00 ±0.15 | 2.60 ±0.15 | |
| Cross recess | Cross recess number | 2 | 2 |
| m（Reference） | 3.6 | 4.2 | |
| Spring washer | d1(Max) | 5.5 | 7 |
| Flat washer | d1XT | 6X0.5 | 8X0.5 |
