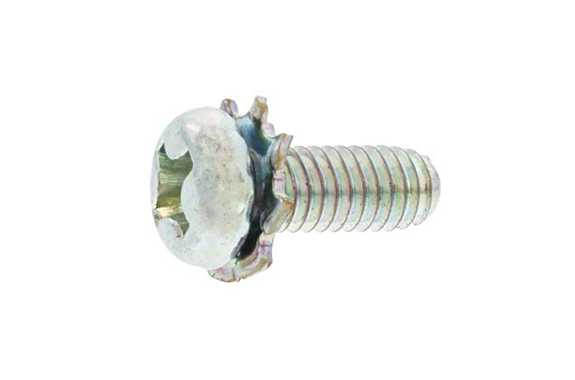

30-7005 Suncotite + S Type Pan LO=2
Model: 30-7005
Dia range:M2.6～M4
Length range:6～8
Iron (or standard).
Plain, Zinc Blue cr6+, Zinc Yellow cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black,…

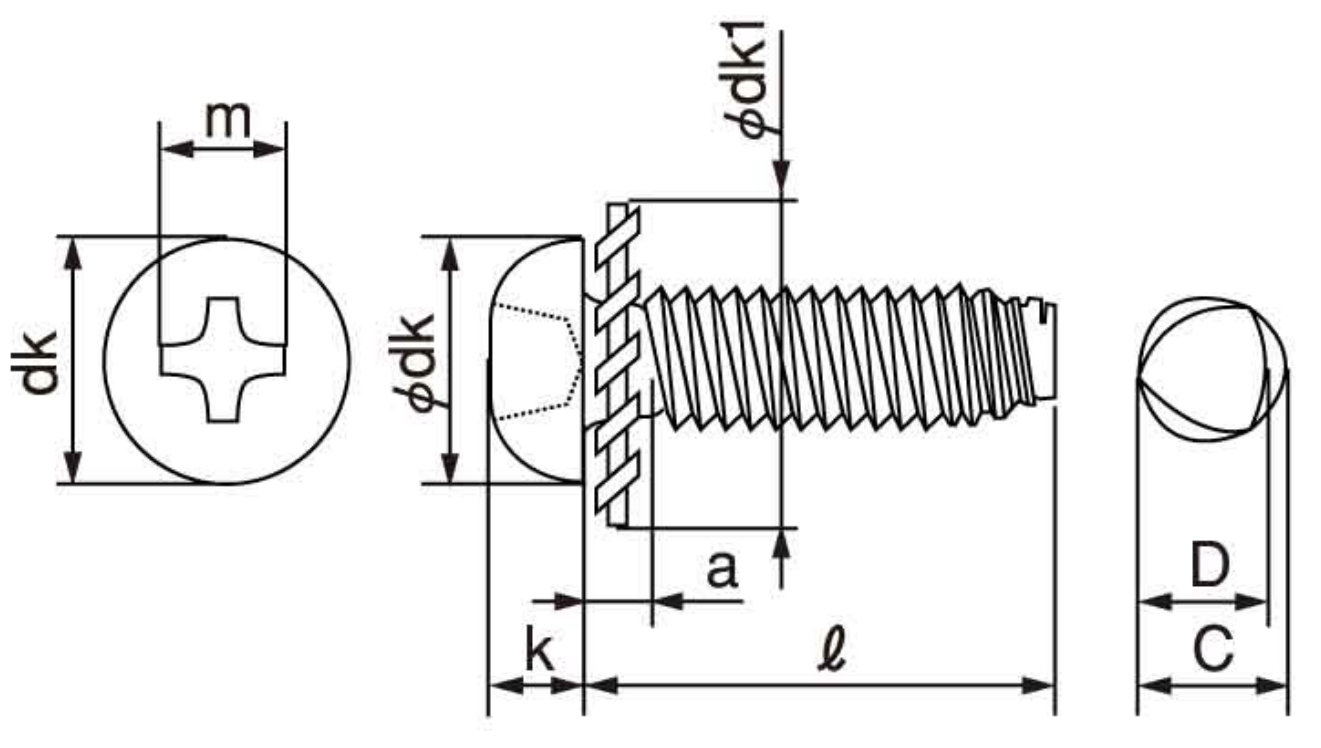

| Nominal thread size | Taptite body | External tooth lock washer dk1 | a | Thread diameter | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| dk | k | Cross recess | C | D | |||||||
| Cross recess number | m (Reference) | Max | Min | Max | Min | ||||||
| 3 | 5.5 | 0 -0.5 | 2±0.15 | 2 | 3.6 | 6.5 | 1.9 | 3.04 | 2.96 | 2.94 | 2.86 |
| 4 | 7 | 0 -0.5 | 2.6±0.15 | 2 | 4.2 | 8.5 | 2.3 | 4.06 | 3.98 | 3.92 | 3.84 |
