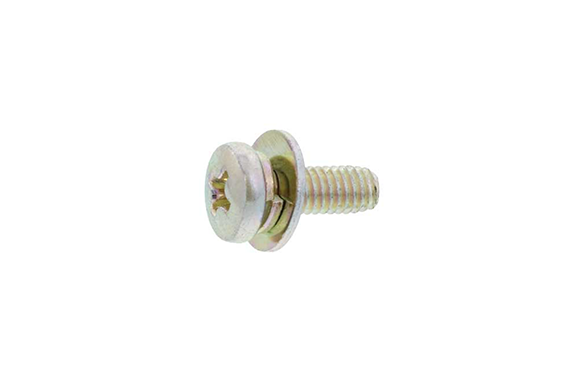

30-7403 Suncotite + S type Bind P=3
Model: 30-7403
Dia range:M3～M4
Length range:6～12
Iron (or standard).
Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white, Nickel,…

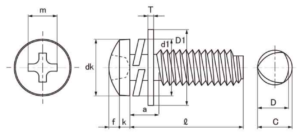

| Screw Nominal Diameter | 3 | 4 | ||
|---|---|---|---|---|
| Taptite Main Body | dk | 6.3 (0 -0.5) | 8.6 (0 -0.5) | |
| f+k | 1.9±0.15 | 2.5±0.15 | ||
| Cross Recess | Cross Recess Number | 2 | 2 | |
| m (Reference) | 2.9 | 4.0 | ||
| Spring Washer | d1(Max) | 5.5 | 7 | |
| Flat Washer D1×T | 8 x 0.5 | 10 x 0.8 | ||
