SUNCO

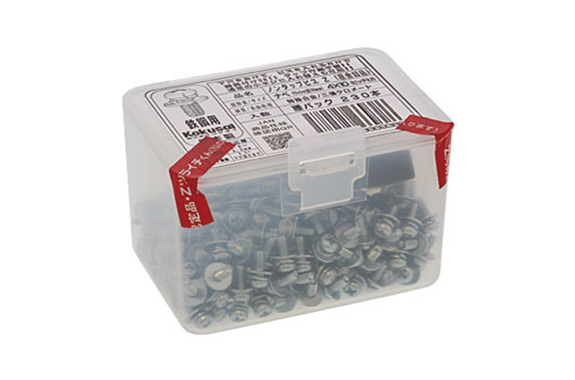

30-7N23 Non Tap Bisnabe Z (Waist Pack)
Model: 30-7N23
Dia range:M4～M4
Length range:8～20
Iron (or standard).
Trivalent zinc cr+3 color white.

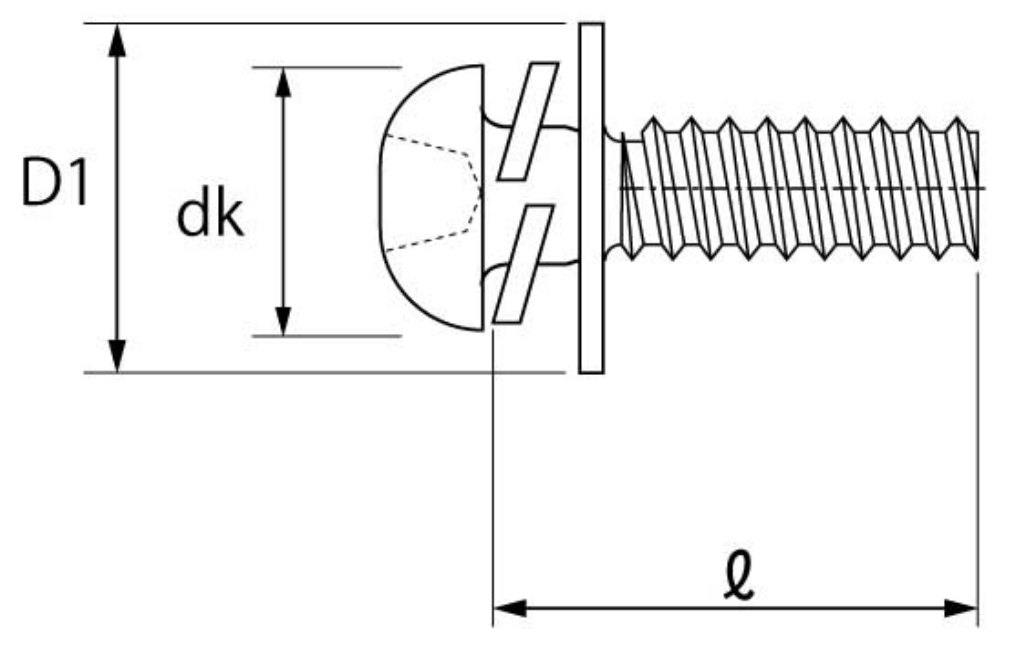

| Size | dk | D1 | Bottom Hole Diameter & Depth (Reference） |
|---|---|---|---|
| 4X8 | 7 | 10 | Plate Thickness: 0.8mm ~ 3.2mm = 3.5mm, 3.3mm or more = 3.7mm |
| 4X10 | |||
| 4X12 | |||
| 4X14 | |||
| 4X20 |
Note:
- Bottom hole depth = Screw length + 5mm.
- Please remove any debris from the bottom hole before inserting the screw.
