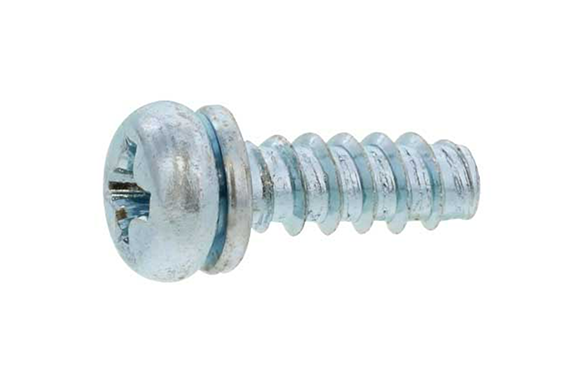

30-8002 Suncotite + B Type Pan P=2
Model: 30-8002
Dia range:M2～M4
Length range:4～12
Iron (or standard).
Zinc Blue cr6+, Zinc Yellow cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black,…
| Nominal thread size | Taptite body | Spring washer | a | Thread diameter | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

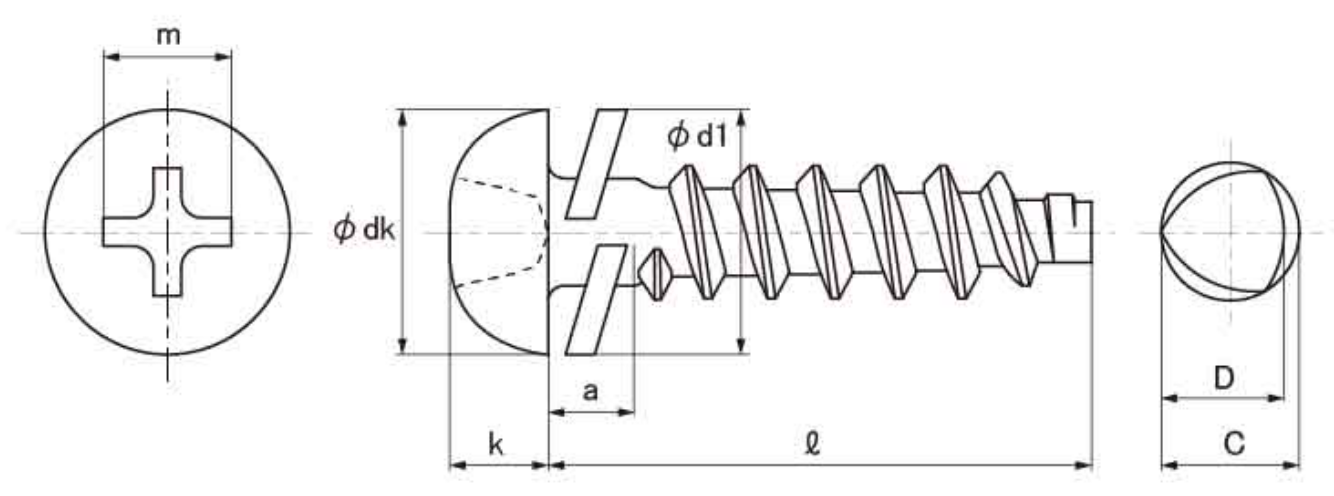

| dk | k | Cross recess | d1 (Max) | C | D | ||||||
| Cross recess number | m (Reference) | Max | Min | Max | Min | ||||||
| 2 | 3.5 | 0 -0.4 | 1.3±0.1 | 1 | 2.2 | 4 | 1.8 | 2.03 | 1.95 | 1.95 | 1.87 |
| 2.6 | 4.5 | 0 -0.4 | 1.7±0.1 | 1 | 2.6 | 4.8 | 2.1 | 2.63 | 2.55 | 2.54 | 2.46 |
| 3 | 5.5 | 0 -0.5 | 2±0.15 | 2 | 3.6 | 5.5 | 2.4 | 3.04 | 2.94 | 2.94 | 2.84 |
| 4 | 7 | 0 -0.5 | 2.6±0.15 | 2 | 4.1 | 7 | 3.5 | 4.04 | 3.94 | 3.90 | 3.80 |
