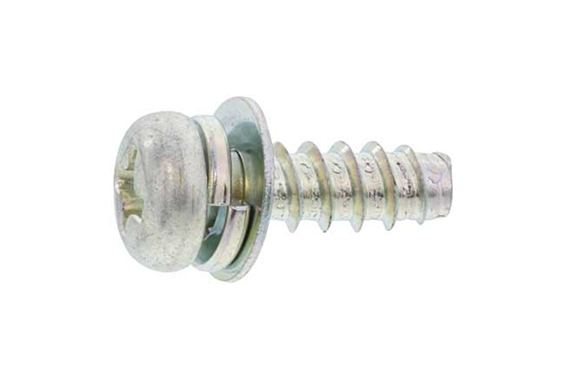

30-8004 Suncotite + B Type Pan P=4
Model: 30-8004
Dia range:M3～M4
Length range:6～12
Iron (or standard).
Zinc Blue cr6+, Zinc Yellow cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black,…

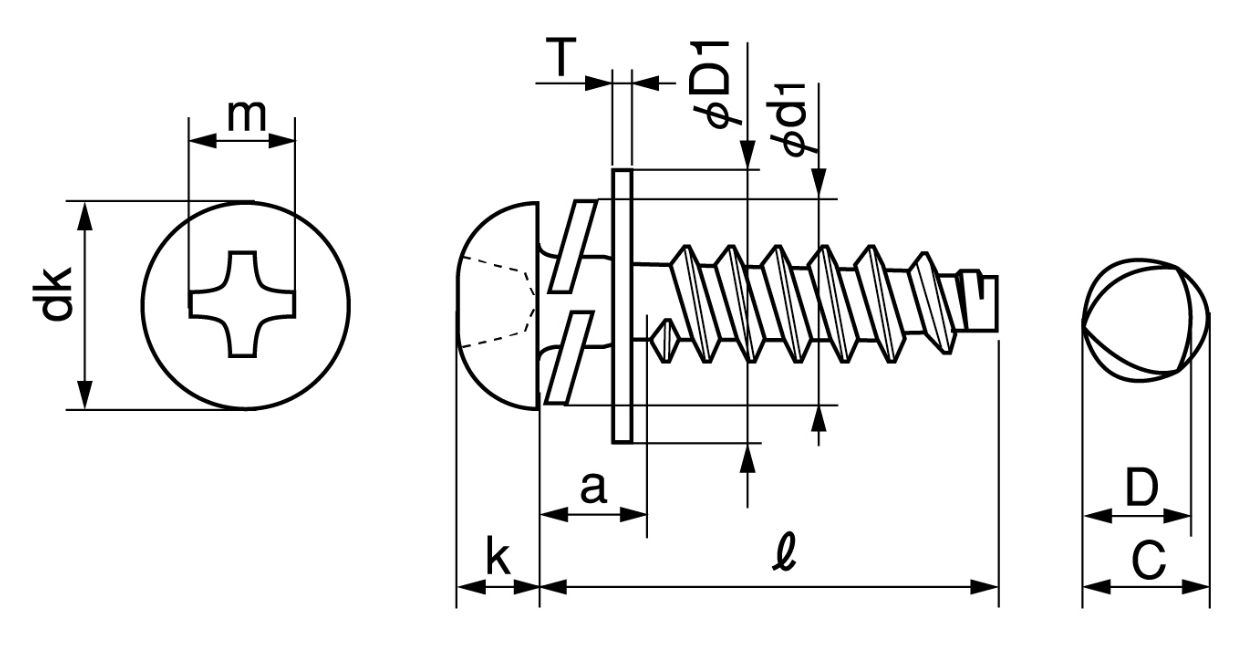

| Nominal thread size | Suncoatite body | Flat washer D1XT | Spring washer d1 (Max) | a | Thread diameter | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dk | k | Cross recess | C | D | ||||||||
| Cross recess number | m (Reference) | Max | Min | Max | Min | |||||||
| 3 | 5.5 | 0 -0.5 | 2±0.15 | 2 | 3.6 | 6X0.5 | 5.5 | 3.0 | 3.04 | 2.94 | 2.94 | 2.84 |
| 4 | 7 | 0 -0.5 | 2.6±0.15 | 2 | 4.2 | 8X0.5 | 7 | 4.1 | 4.04 | 3.94 | 3.90 | 3.80 |
