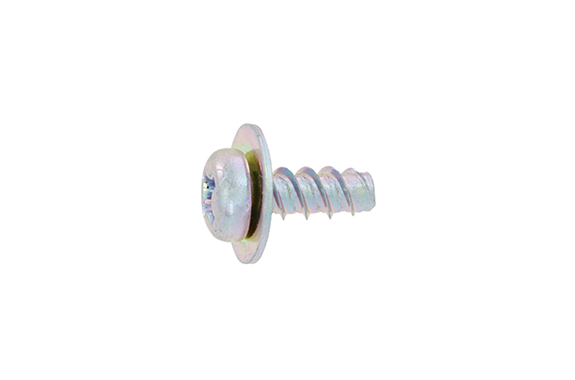

30-9001 Suncotite + P type Pan P=1
Model: 30-9001
Dia range:M3～M4
Length range:8～14
Iron (or standard).
Trivalent zinc cr+3 color white, Non-Chrome White.

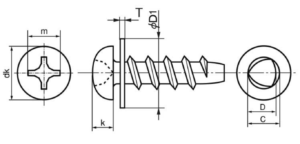

| Nominal Screw Diameter | Sankotite Body | Flat Washer D1 × T | ||||||
|---|---|---|---|---|---|---|---|---|
| dk | Cross Recess Number | C | D | |||||
| Standard Dimension | Tolerance | Maximum | Minimum | Maximum | Minimum | |||
| 3 | 5.5 | 0 -0.5 | 2 | 3.14 | 3.02 | 3.04 | 2.92 | 8X0.5 |
