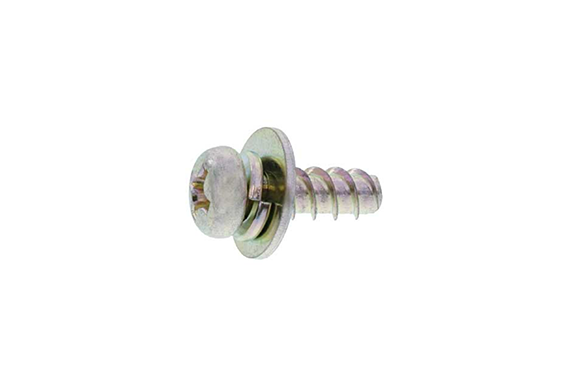

30-9003 Suncotite + P type Pan P=3
Model: 30-9003
Dia range:M3～M4
Length range:6～12
Iron (or standard).
Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…
| Screw Nominal Diameter | 3 | ||
|---|---|---|---|
| Taptite Body | dk | 5.5 (0 -0.5) | |
| f+k | 2±0.15 | ||
| Cross Recess | Cross Recess Number | 2 | |
| m (reference) | 3.6 | ||
| Thread Diameter | C | 3.03～3.15 | |
| D | 2.93～3.05 | ||
| Spring Washer | d1 (Maximum) | 5.5 | |
| Flat Washer D1 × T | 8 x 0.5 | ||
