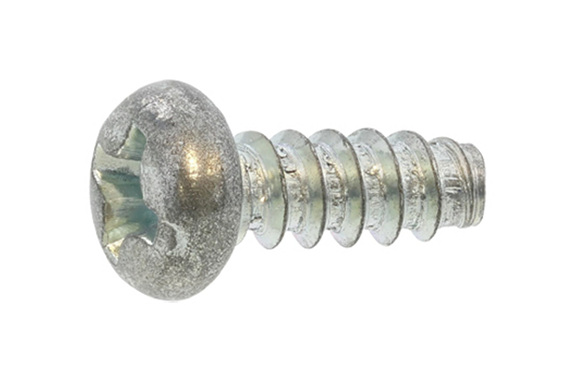

30-A100 + B Type Pan Head (Natec)
Model: 30-A100
Dia range:M3～M3
Length range:6～10
Iron (or standard).
Zinc Yellow cr6+, Trivalent zinc cr+3 color white, Non-Chrome White.
| Nominal thread size d | Pitch (threads/inch) | dk | k | Cross recess | Thread diameter | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | m | Cross recess | C | D | ||||
| Max | Max | Min | Max | Min | |||||||
| M2 | 40 | 3.5 | 0 -0.4 | 1.3 | ±0.1 | 2.2 | 1 | 2.03 | 1.95 | 1.95 | 1.87 |
| M2.6 | 28 | 4.5 | 1.7 | 2.6 | 2.63 | 2.55 | 2.54 | 2.46 | |||
| M3 | 24 | 5.5 | 0 -0.5 | 2.0 | ±0.15 | 3.5 | 2 | 3.04 | 2.94 | 2.94 | 2.84 |
