SUNCO

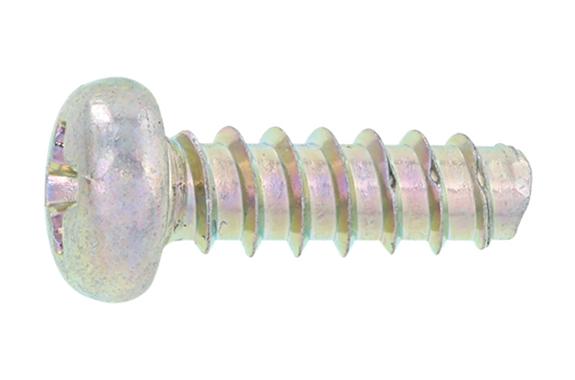

30-D200 DELTITE 2 (Pan Head)
Model: 30-D200
Dia range:M2～M4
Length range:6～12
Iron (or standard).
Zinc Yellow cr6+, Trivalent zinc cr+3 color white.

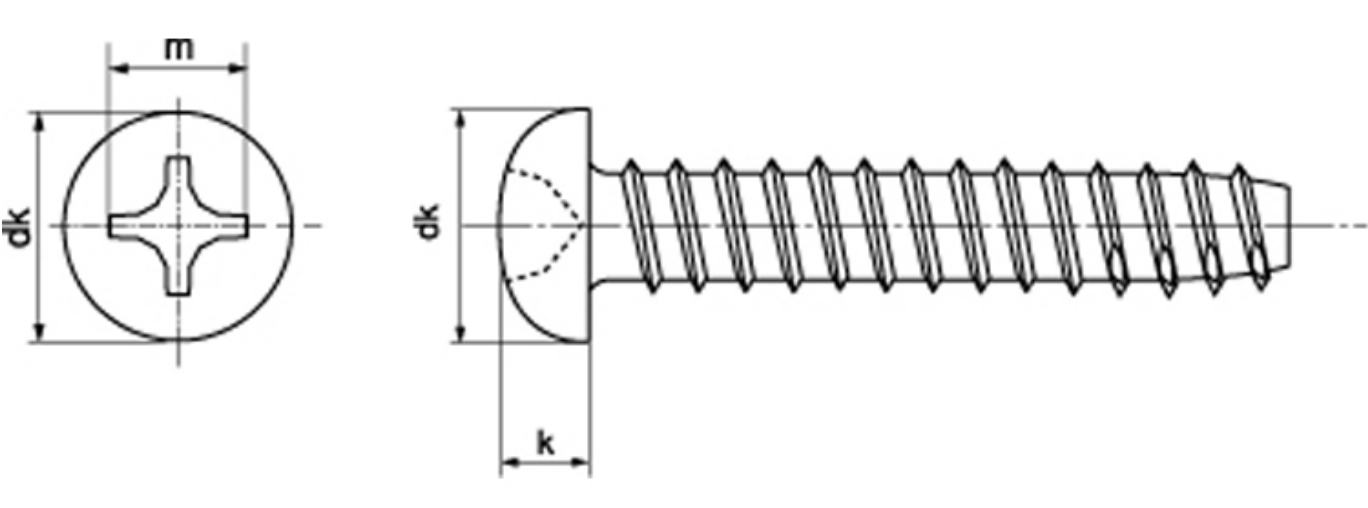

| Nominal size | Pitch | Cross-recess number | dk | k | m | ||
|---|---|---|---|---|---|---|---|
| Standard dimension | Tolerance | Standard dimension | Tolerance | Reference | |||
| 2 | 0.63 | 1 | 3.5 | 0 -0.4 | 1.3 | ±0.1 | 2.2 |
| 3 | 1.06 | 2 | 5.5 | 0 -0.5 | 2 | ±0.15 | 3.6 |
| 4 | 1.41 | 7 | 2.6 | 4.2 | |||
