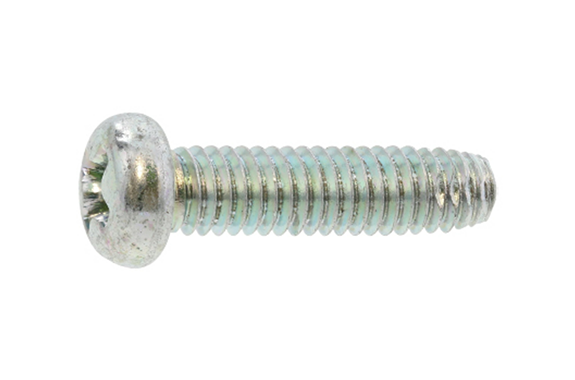

30-D300 DELTITE 3 (Pan Head)
Model: 30-D300
Dia range:M2.6～M5
Length range:4～35
Iron (or standard).
Zinc Yellow cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black, Nickel.

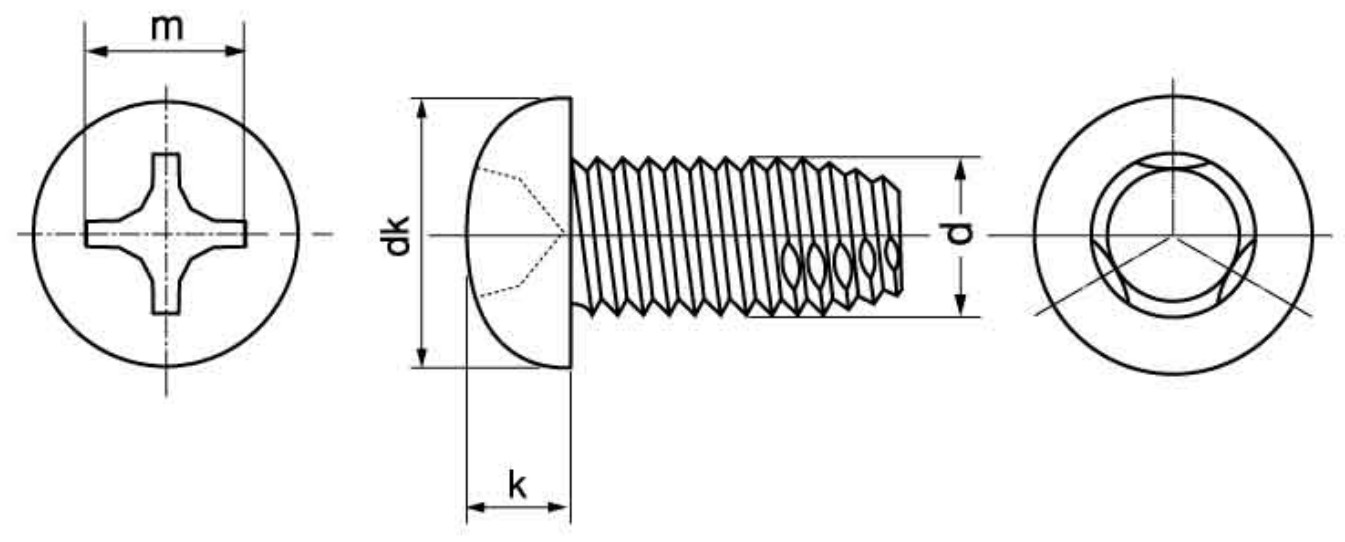

| Nominal Size | Pitch | dk | k | Cross-recess Number | |||
|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | m | Cross-recess Number | ||
| Max | |||||||
| 2.6 | 0.45 | 4.5 | 0 -0.4 | 1.7 | ±0.1 | 2.6 | 1 |
| 3 | 0.5 | 5.5 | 0 -0.5 | 2 | ±0.15 | 3.5 | 2 |
| 4 | 0.7 | 7 | 2.6 | 4.1 | |||
