SUNCO

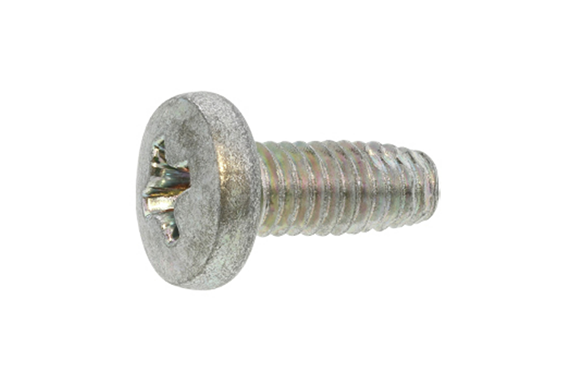

30-D304 DELTITE 3 (Bind Head)
Model: 30-D304
Dia range:M3～M4
Length range:5～12
Iron (or standard).
Zinc Yellow cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black.

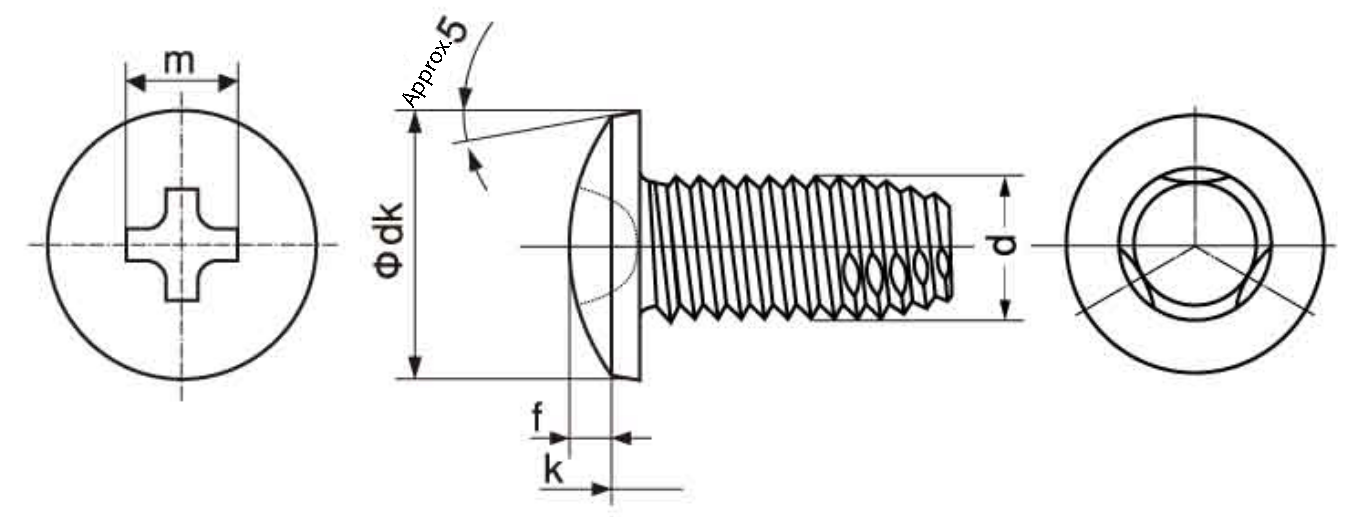

| Nominal Size d | Pitch | dk | f+k | Cross-recess Number | ||
|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | m Max | ||
| 3 | 0.5 | 6.3 | 0 -0.5 | 1.90 | ±0.15 | 3.2 |
| 4 | 0.7 | 8.3 | 2.50 | 4.7 | ||
