SUNCO

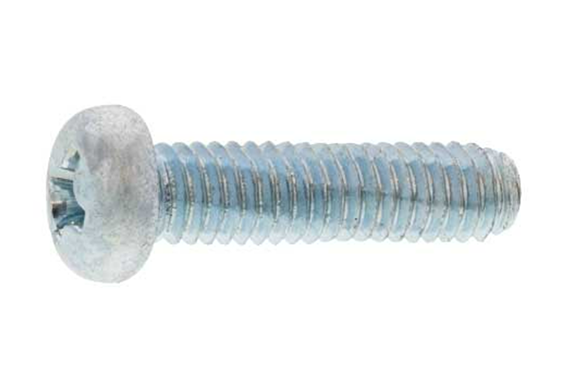

30-FT00 FT Screw (Pan Head)
Model: 30-FT00
Dia range:M3～M6
Length range:6～25
Iron (or standard).
Zinc Yellow cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black, Chrome.

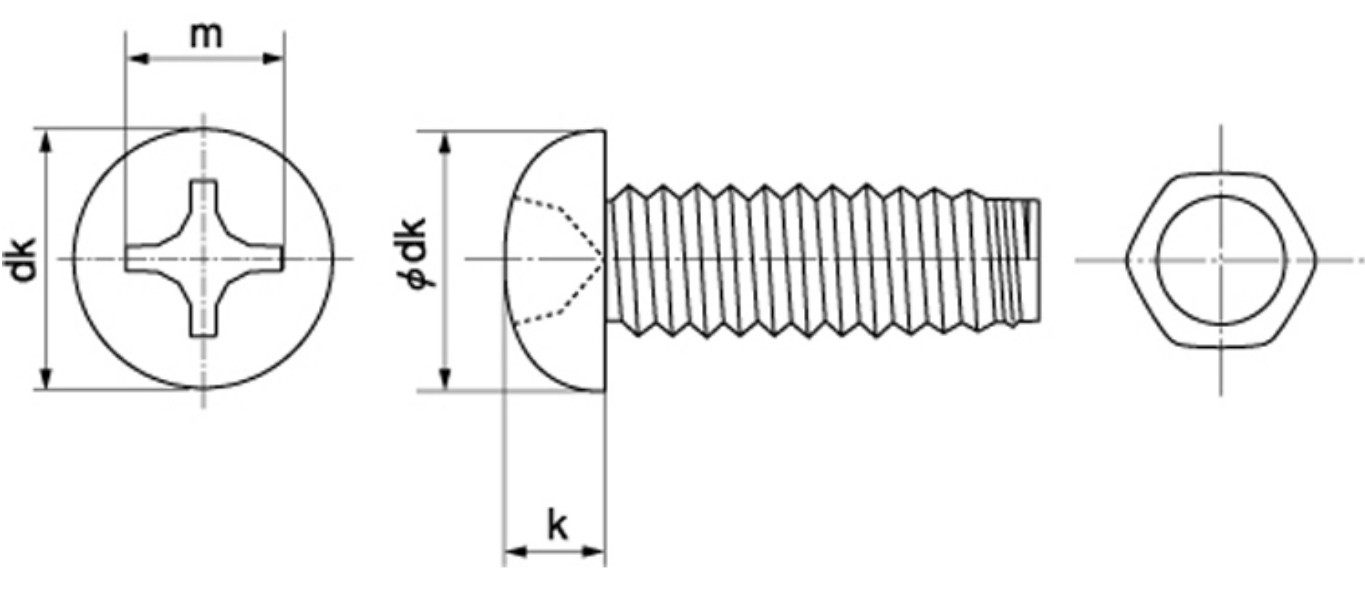

| Nominal Size | dk | k | Cross-recess Number | |||
|---|---|---|---|---|---|---|
| Pitch | Standard Dimension | Tolerance | Standard Dimension | Tolerance | m | |
| Max | ||||||
| 3 | 0.5 | 5.5 | 0 -0.5 | 2.0 | ±0.15 | 3.5 |
| 4 | 0.7 | 7.0 | 2.6 | 4.1 | ||
| 5 | 0.8 | 9.0 | —0.6 | 3.3 | 4.8 | |
| 6 | 1.0 | 10.5 | 0 -0.7 | 3.9 | ±0.2 | 6.3 |
