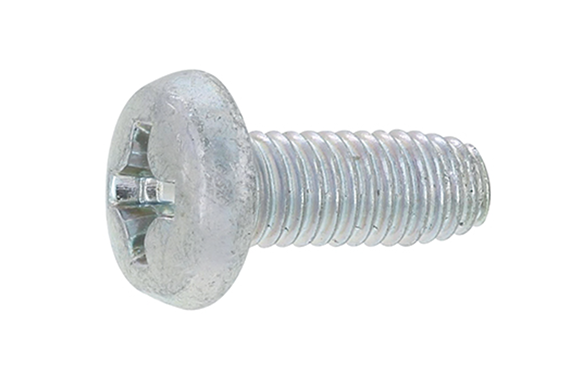

30-I004 (+) Fast Tight Bindings
Model: 30-I004
Dia range:M3～M4
Length range:8～10
Iron (or standard).
Trivalent zinc cr3+ color white.

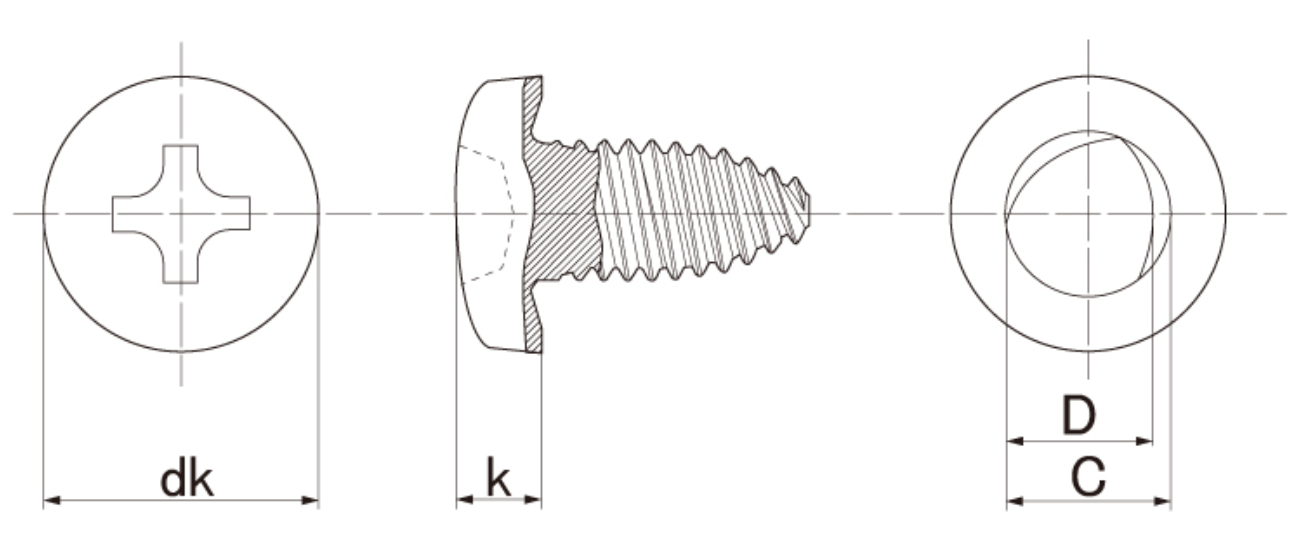

| Nominal Diameter | Pitch | Standard Dimension (dk) | k (Standard Dimension) | Cross Hole Number | Screw Outer Diameter | ※ Recommended Drill Hole Diameter | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | D | Steel | Aluminum | |||||||||
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Max | Min | Max | Min | Plate Thickness 0.70mm to 1.60mm | ||||
| 3 | 0.5 | 6.3 | 0 -0.5 | 1.9 | ±0.15 | 2 | 3.02 | 2.93 | 2.97 | 2.87 | 2.35-2.51 | 2.19-2.35 |
| 4 | 0.7 | 8.3 | 0 -0.5 | 2.5 | ±0.2 | 2 | 4.02 | 3.92 | 3.95 | 3.83 | 3.09-3.32 | 2.86-3.09 |
※ The recommended drill hole diameter in the table is within the range of the drill hole diameter and is not a tolerance. The tolerance for the drill hole should be set according to the usage purpose.
