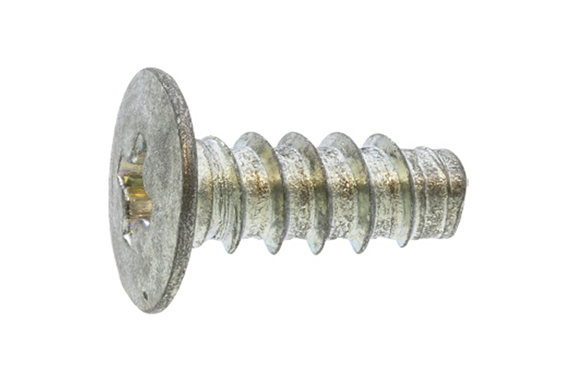

30-LMB0 Lamimate (+) B Type (Nitto)
Model: 30-LMB0
Dia range:M2.6～M4
Length range:6～12
Iron (or standard).
Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black.
Unit: mm

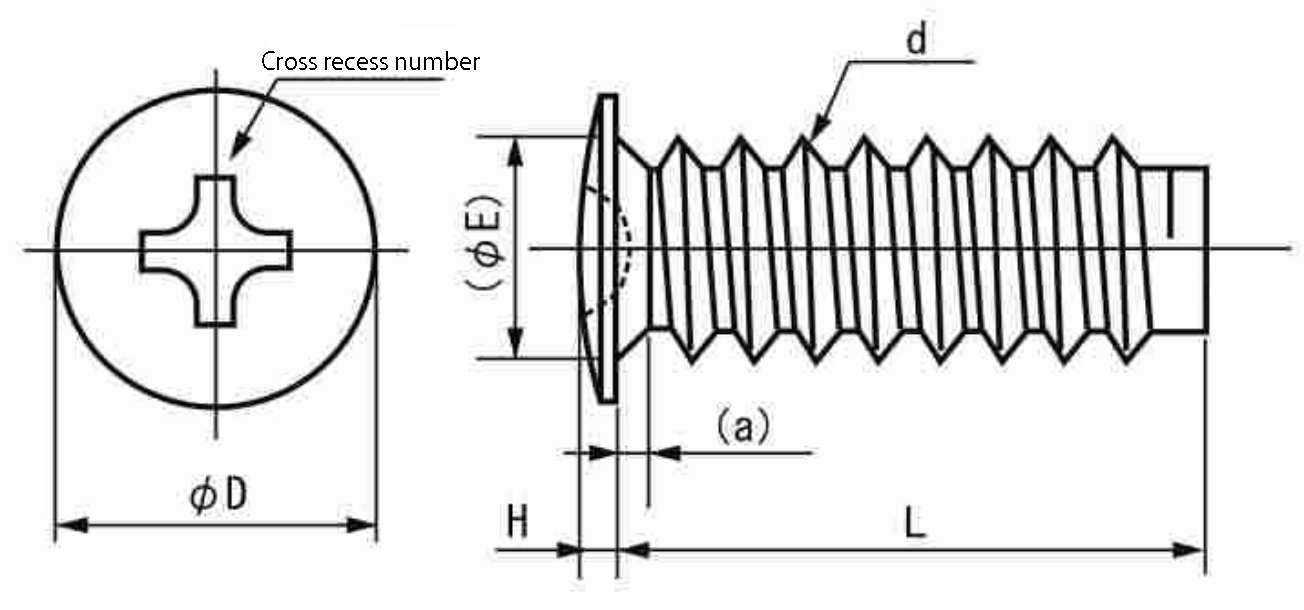

| Nominal Thread (d) | D | H | Cross Recess Number | Underhead Dimensions | |||
|---|---|---|---|---|---|---|---|
| Dimension | Tolerance | Dimension | Tolerance | (E) | (a) | ||
| 2.6 | 5 | 0 -0.5 | 0.6 | ± 0.1 | 1 | 2.6 | 0.5 |
| 3 | 6 | 0 -0.6 | 0.7 | ±0.15 | 1 | 3 | 0.5 |
| 4 | 8 | 0 -0.6 | 0.9 | ±0.15 | 2 | 4 | 0.7 |
