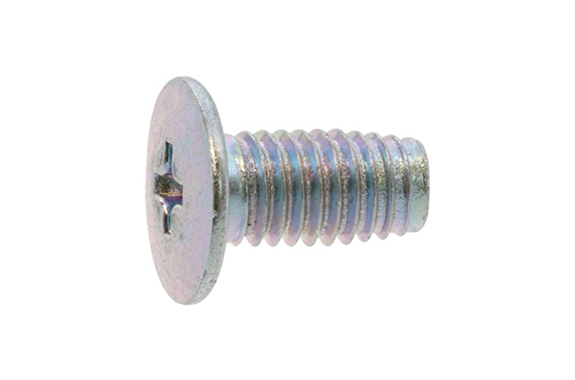

30-LMS0 Lamimate (+) S Type (Nitto)
Model: 30-LMS0
Dia range:M3～M5
Length range:6～12
Iron (or standard).
Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black, Nickel.

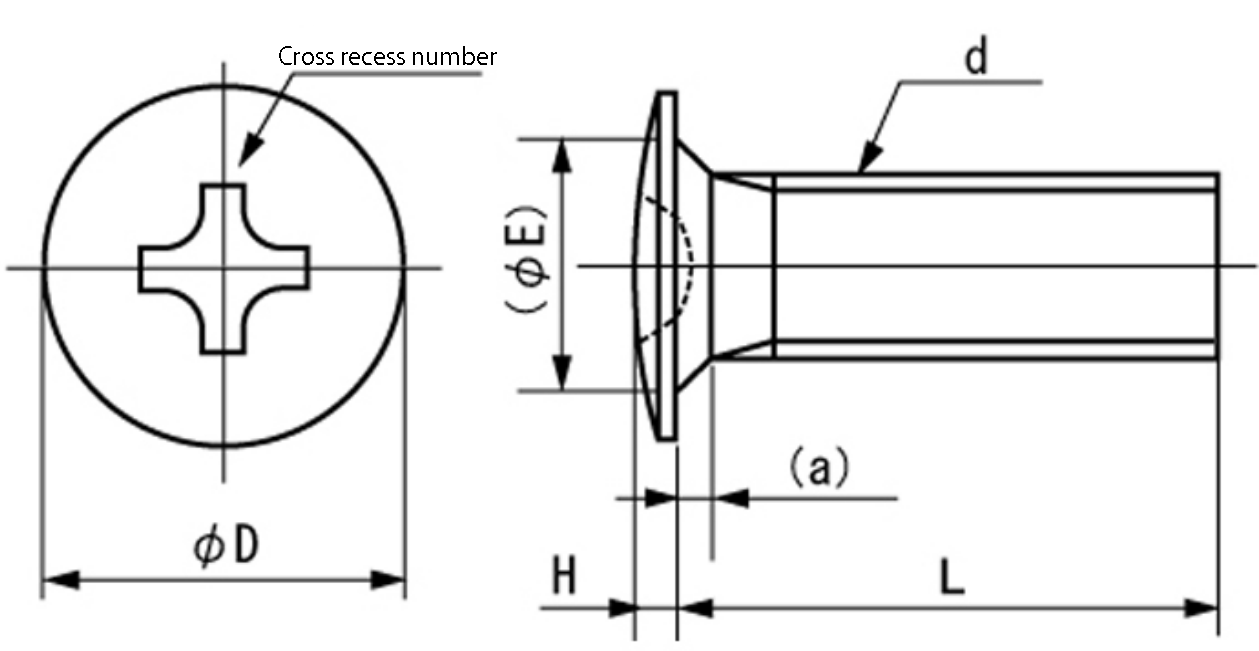

| Nominal Thread d | D | H | Cross recess number | Underhead Dimensions | |||
|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | E | a | ||
| 3 | 6 | 0 -0.6 | 0.7 | ±0.15 | 1 | 3 | 0.5 |
| 4 | 8 | 0 -0.6 | 0.9 | ±0.15 | 2 | 4 | 0.7 |
