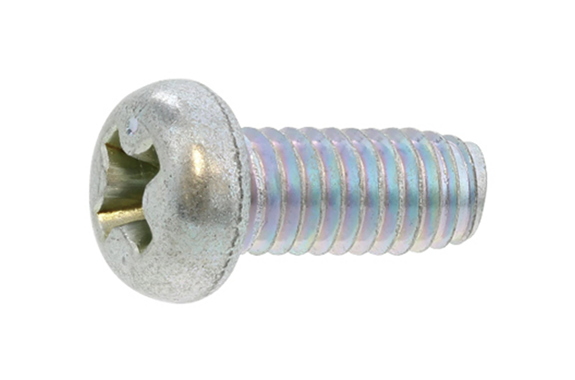

30-N000 (+) S Tite Pan Head (Nitto)
Model: 30-N000
Dia range:M3～M4
Length range:5～12
Iron (or standard).
Zinc Yellow cr6+, Trivalent zinc cr+3 color white.

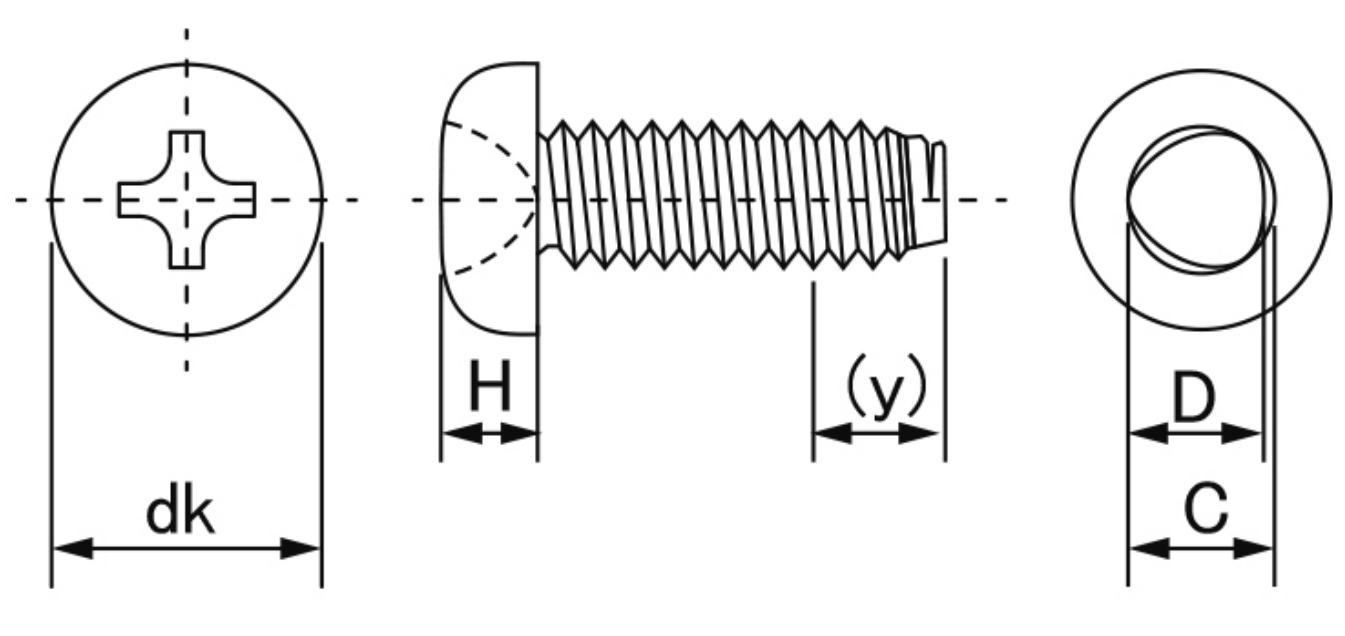

| Nominal Diameter | Pitch | Cross-recess Number | dk | H | Screw Outer Diameter | Approx. Taper Length (y) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | C | D | ||||||
| Max | Min | Max | Min | ||||||||
| 3 | 0.5 | 2 | 5.5 | 0 -0.5 | 2.0 | ±0.15 | 3.05 | 2.97 | 2.95 | 2.87 | 2.0 |
| 4 | 0.7 | 7 | 2.6 | 4.07 | 3.99 | 3.93 | 3.85 | 2.8 | |||
