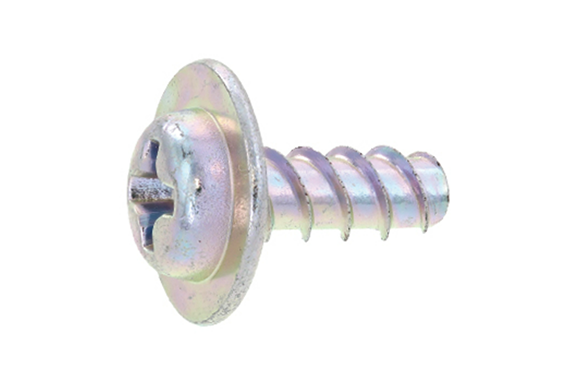

30-N20W (+) P Tite WH (Nittoseiko)
Model: 30-N20W
Dia range:M3～M3
Length range:8～8
Iron (or standard).
Zinc Yellow cr6+, Trivalent zinc cr+3 color white.

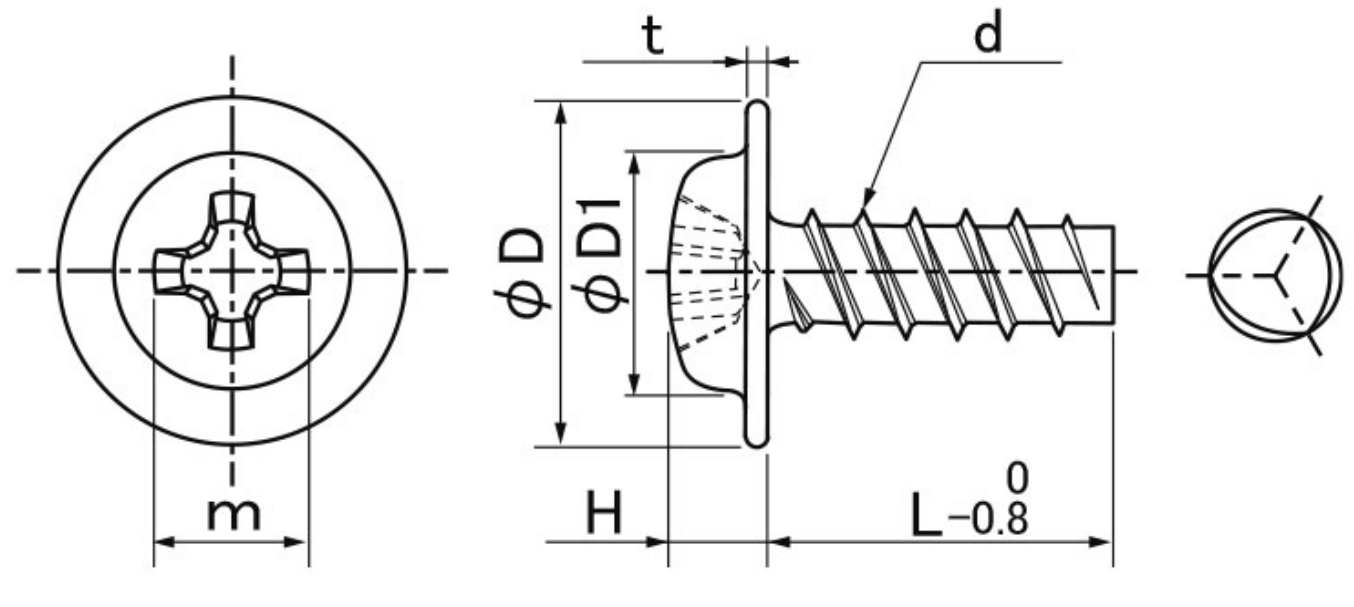

| d | Pitch | Cross recess number | ϕD | ϕD1 | H | t | m | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Reference | Standard Dimension | Tolerance | Standard Dimension | Tolerance | Reference | |||
| ϕ3 | 1.27 | 2 | 8 | 0 -0.5 | 5.5 | 2.3 | ±0.2 | 0.5 | ±0.15 | 3.6 |
