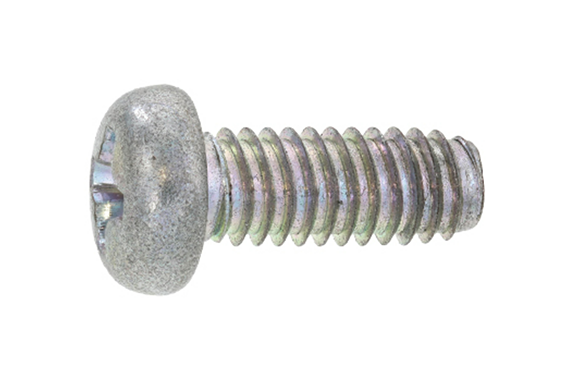

30-NA00 Alumitite Pan Head (Nitto)
Model: 30-NA00
Dia range:M3～M4
Length range:6～12
Iron (or standard).
Trivalent zinc cr+3 color white, Stainless coatcr+3.
Unit: mm
| Nominal diameter | Pitch | Screw outer diameter | Taper length （y） | Torsional strength (unit) | |
|---|---|---|---|---|---|
| ϕC | D | ||||
| 1.4 | 0.3 | 1.42〜1.48 | 1.36〜1.42 | (0.6) | 9. 31(cN·m) |
| 1.7 | 0.35 | 1.69〜1.75 | 1.62〜1.68 | (0.7) | 19. 7(cN·m) |
| 2 | 0.4 | 1.96〜2. 04 | 1.88〜1.96 | (0.8) | 34. 5(cN·m) |
| 2.6 | 0.45 | 2.58〜2. 66 | 2. 49〜2. 57 | (1.35) | 1.03(N·m) |
| 3 | 0.5 | 2. 99 〜3. 07 | 2. 89〜2. 97 | (1.5) | 1.71(N·m) |
| 4 | 0.7 | 4. 00〜4. 08 | 3. 86〜3. 94 | (2.1) | 3. 89(N·m) |
| 5 | 0.8 | 5.01〜5. 09 | 4. 85〜4. 93 | (2.4) | 8. 28(N·m) |
| 6 | 1.0 | 6. 09〜6.19 | 5. 89〜5.99 | (3.0) | 13. 66(N·m) |
