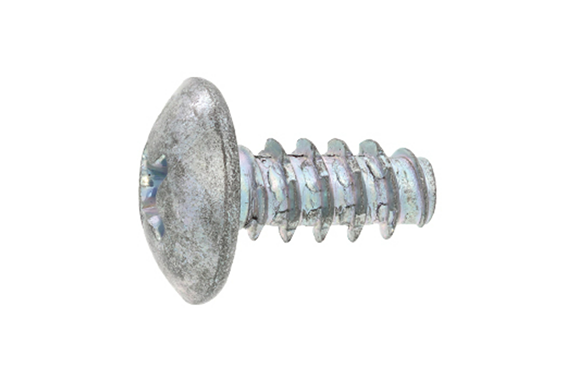

30-NG03 Gizatite Truss Head (Nitto)
Model: 30-NG03
Dia range:M4～M4
Length range:8～12
Iron (or standard).
Zinc Yellow cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black.

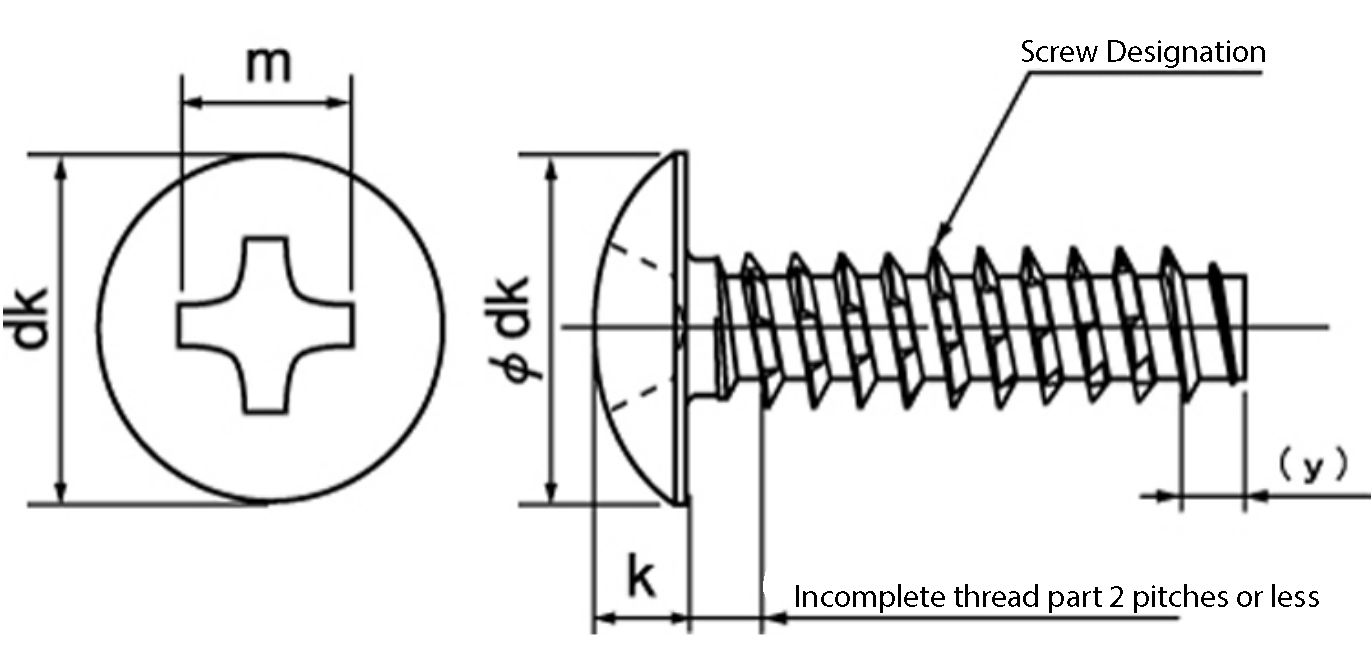

| Nominal diameter of screw d | dk | k | m | ||
|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Reference | |
| 4 | 9.4 | 0 -0.5 | 2.5 | ±0.15 | 4.3 |
