SUNCO

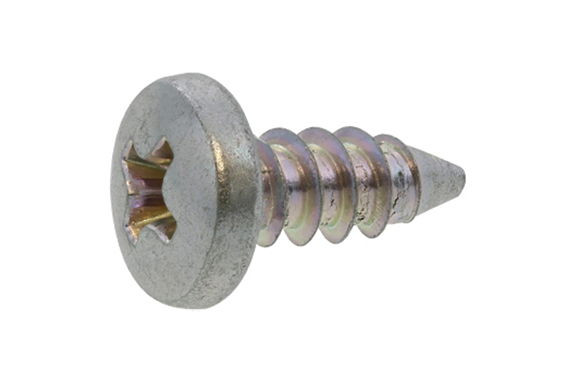

30-NL04 (+) Lamitite A Bind (Nitto)
Model: 30-NL04
Dia range:M3～M4
Length range:6～10
Iron (or standard), SUS410.
Plain, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black, Nickel.

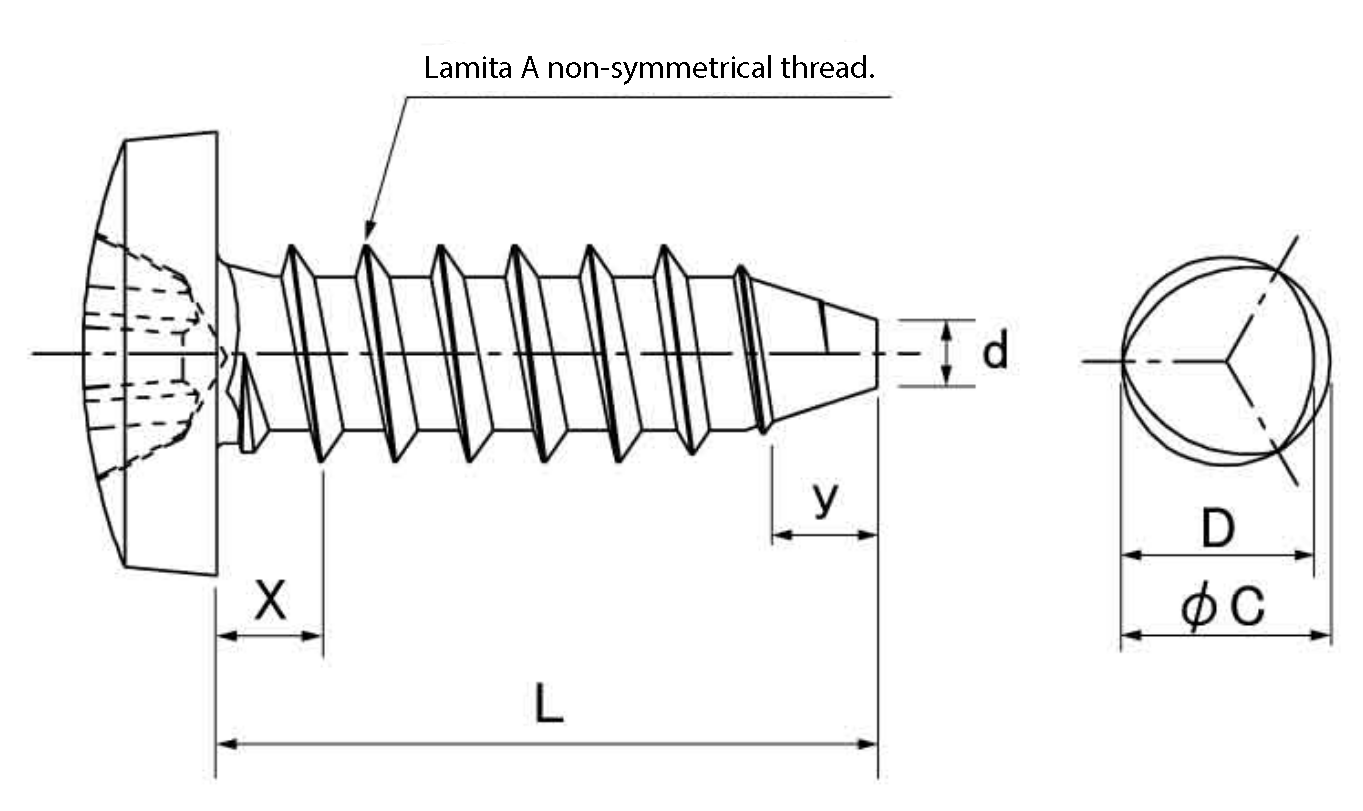

| Call Diameter | Thread Outer Diameter | L Size Difference | Neck Circular Arc Section (x) | End Guide Diameter (d) | End Guide Length (y) | |
|---|---|---|---|---|---|---|
| (φC) | (D) | |||||
| φ3 | 3.03 〜3.13 | 2.98 〜3.08 | ±0.8 | (2.1) | (0.9) | (1.8) |
| φ4 | 4.05〜4・17 | 3.98 〜4.10 | ±0.8 | (2.8) | (1.3) | (1.8) |
| φ5 | 5.04〜5.16 | 4.96〜508 | ±0.8 | (3.2) | (2.0) | (1.8) |
