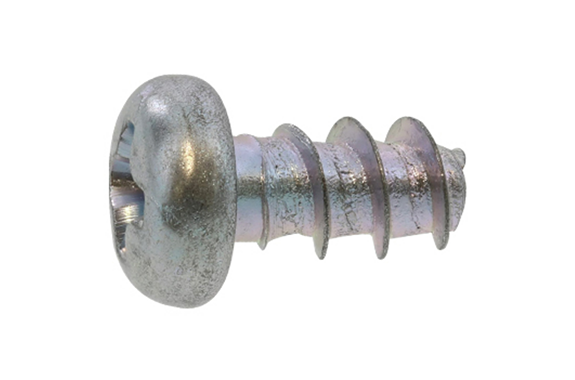

30-P000 Plax Pan Head
Model: 30-P000
Dia range:M2～M4
Length range:5～20
Iron (or standard).
Zinc Yellow cr6+, Trivalent zinc cr+3 color white, Zinc black, Nickel.

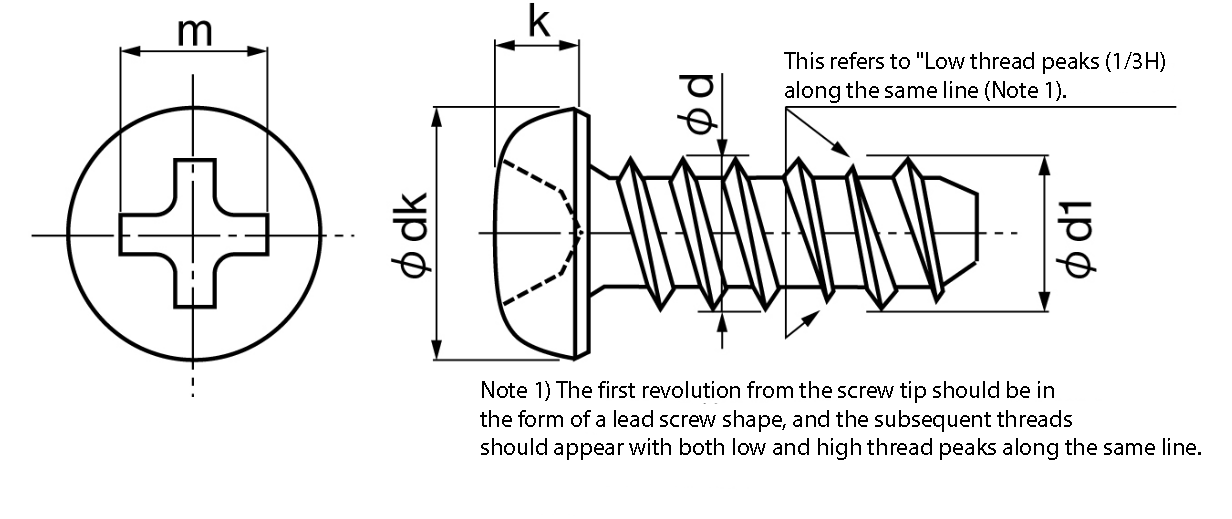

| Thread Diameter (d) | dk | k | m | d | d1 | ||
|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Reference | Dimension | Dimension | |
| M2 | 3.5 | 0 -0.4 | 1.3 | ±0.1 | 2.2 | 1.90〜2.00 | φd+ 0.02〜0.06 |
| M2.6 | 4.5 | 1.7 | 2.6 | 2.50〜2.60 | |||
| M3 | 5.5 | 0 -0.5 | 2 | ±0.15 | 3.6 | 2.90〜3.00 | |
| M4 | 7 | 2.6 | 4.2 | 3.85〜4.00 | |||
