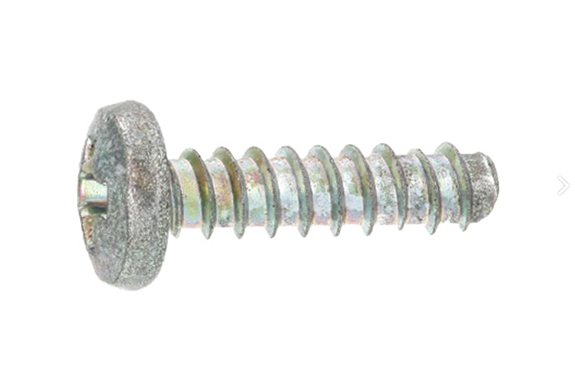

30-P004 Plax Bind Head
Model: 30-P004
Dia range:M3～M3
Length range:8～12
Iron (or standard).
Trivalent zinc cr+3 color white, Nickel.

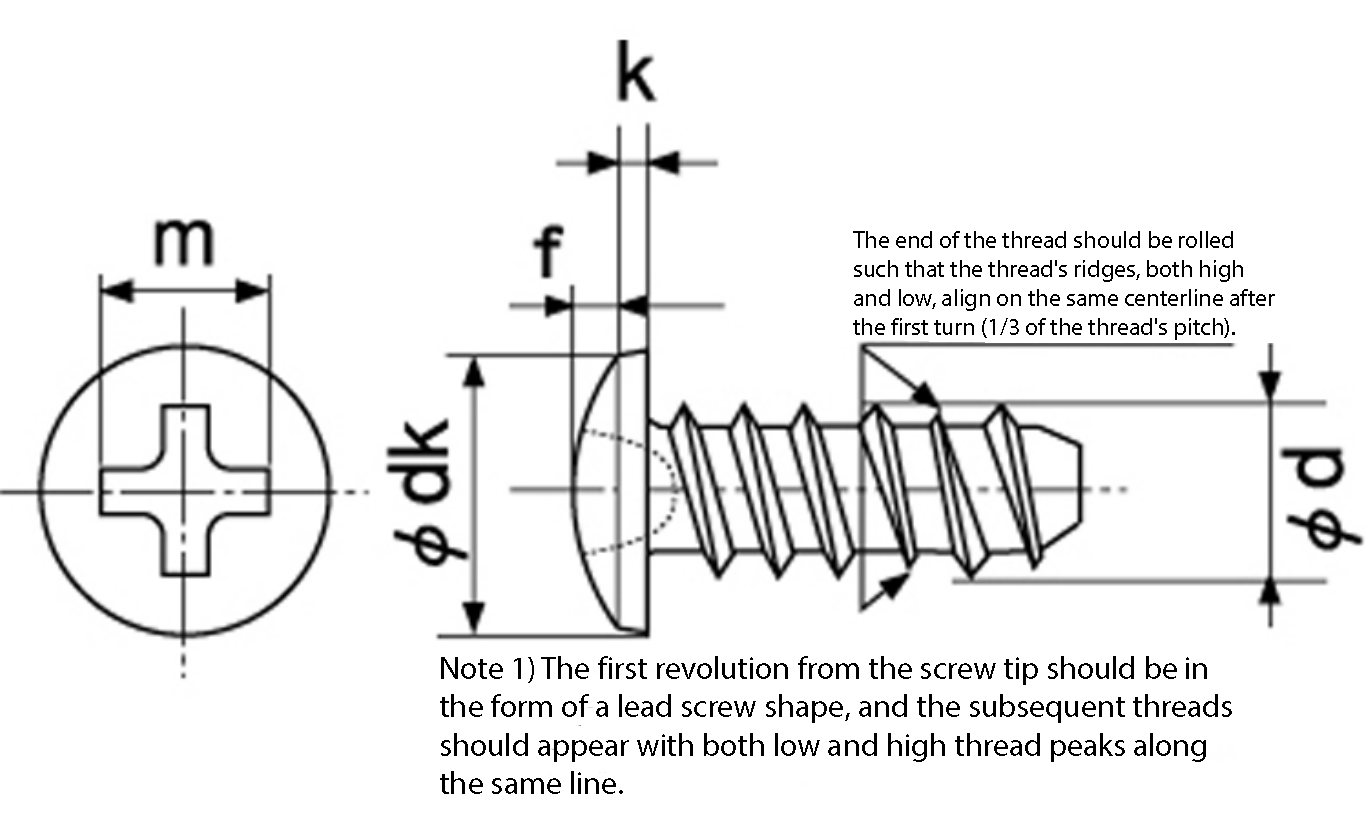

| Thread Size (d) | dk | k | f | k+f | m | d | |||
|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Standard Dimension | Tolerance | Standard Dimension | Tolerance | Reference | Dimension | |
| M2 | 4.3 | 0 -0.4 | 0.85 | 0.35 | ±0.1 | 1.2 | ±0.15 | 2.2 | 0.02〜0.06 |
| M3 | 6.3 | 0 -0.5 | 1.3 | 0.6 | 1.9 | 3.7 | 2.90〜3.06 | ||
| M4 | 8.3 | 1.7 | 0.8 | ±0.15 | 2.5 | ±0.2 | 4.3 | 0.02〜0.06 | |
