SUNCO
30-PD00 (+) DELTA PT Pan Head
Model: 30-PD00
Dia range:M2～M5
Length range:4～20
Iron (or standard), Stainless steel (303, 304,…).
Plain, Zinc Yellow Cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black.

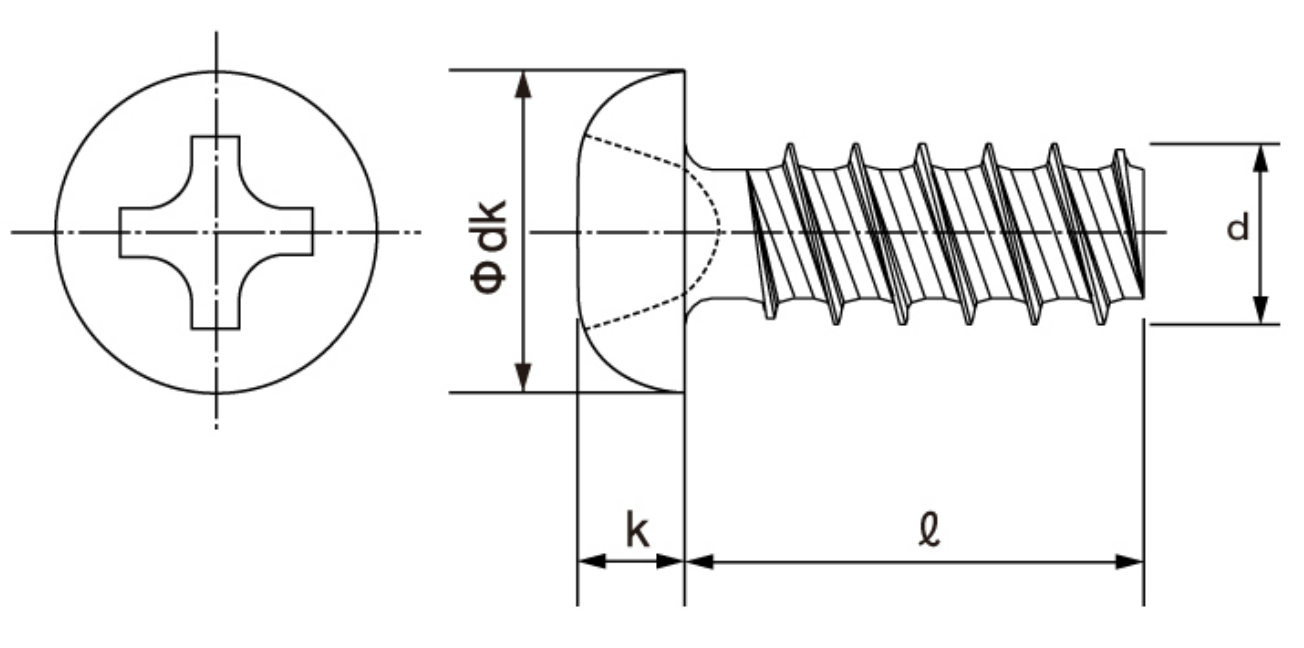

| Thread Size (d) | Number of Cross Holes | dk | k | ||
|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | ||
| 2.5 | 1 | 4.5 | 0 -0.4 | 1.7 | ±0.1 |
| 3 | 2 | 5.5 | 0 -0.5 | 2.0 | ±0.15 |
| 4 | 7.0 | 2.6 | |||
| 5 | 9.0 | 0 -0.6 | 3.3 | ||
