30-PD04 (+) DELTAPT Bind Head
Model: 30-PD04
Dia range:M3～M5
Length range:6～16
Iron (or standard), Stainless steel (303, 304,…).
Plain, Trivalent zinc cr+3 color white, Black Nickel.

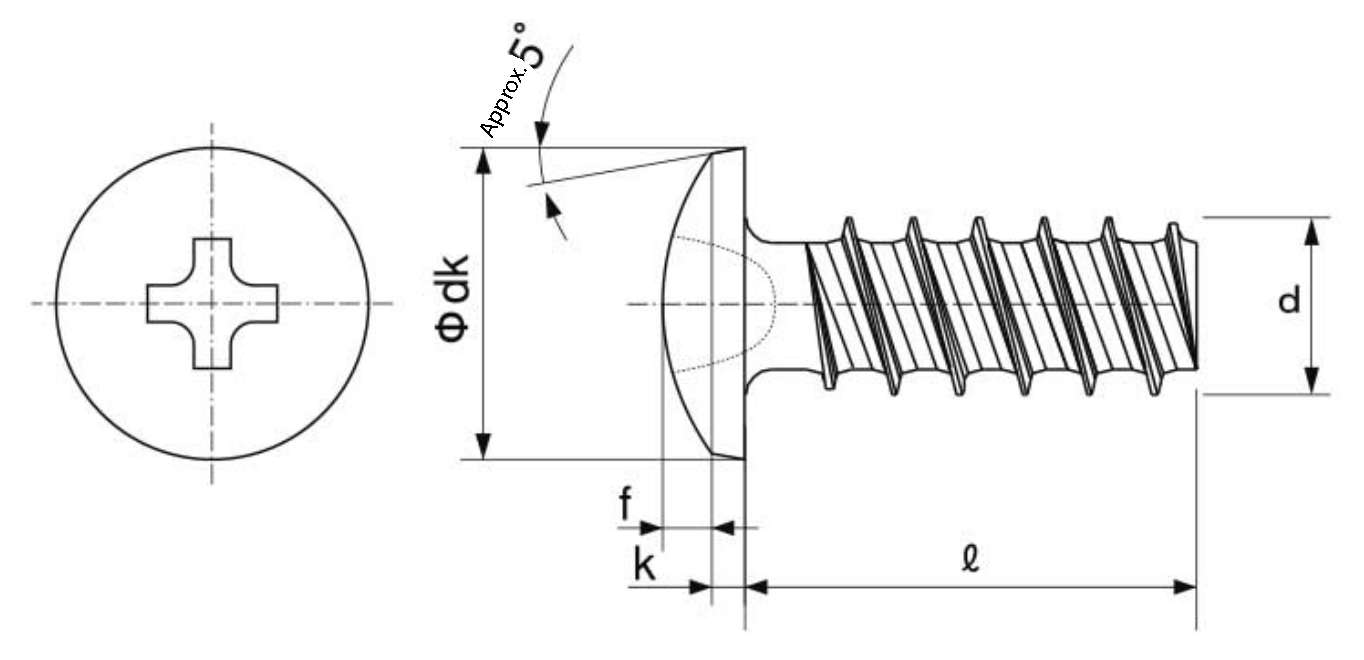

| Screw Diameter (d) | Cross Hole Number | dk | k | f | k+f | |||
|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Approx. | Standard Dimension | Tolerance | Standard Dimension | Tolerance | ||
| 3 | 2 | 6.3 | 0 -0.5 | 1.3 | 0.6 | ±0.1 | 1.9 | ±0.15 |
| 4 | 8.3 | 1.7 | 0.8 | ±0.15 | 2.5 | ±0.2 | ||
| 5 | 10.3 | 0 -0.6 | 2.1 | 1.0 | 3.1 | |||
