SUNCO

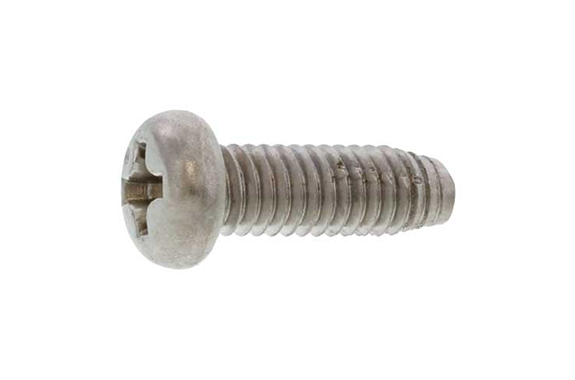

30-S000 Super Point 3 Pan Head
Model: 30-S000
Dia range:M4～M4
Length range:8～12
SUS410.
Plain.

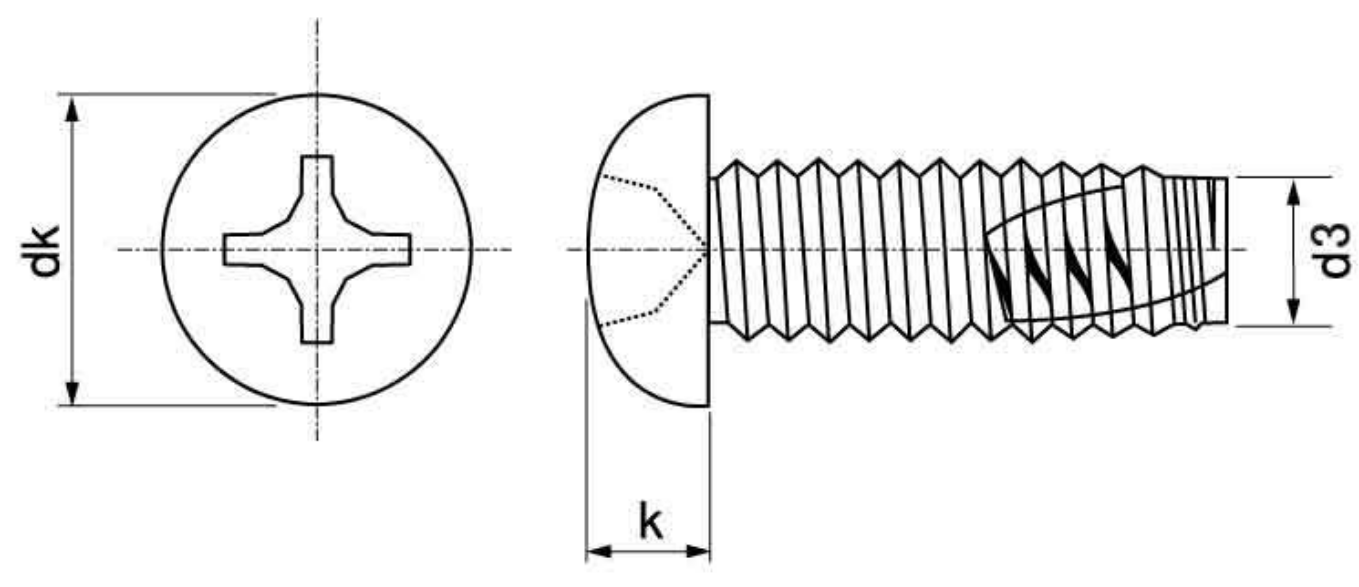

| Screw Nominal Diameter | Head Diameter dk | Head Height k | Screw Diameter d3 | |||
|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Maximum | Minimum | |
| M4 | 6.75 | ±0.25 | 2.6 | ±0.15 | 3.97 | 3.84 |
