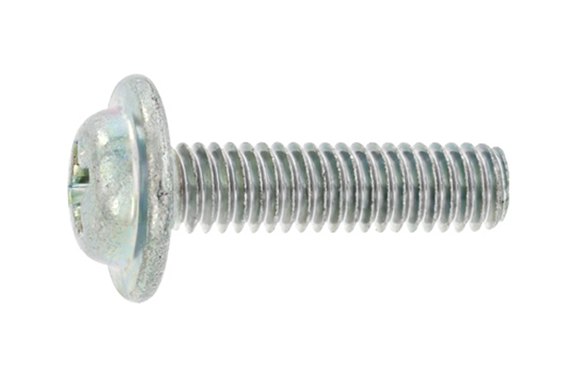

30-SP00 SP Washer Head Machine Screw
Model: 30-SP00
Dia range:M3～M5
Length range:4～25
Iron (or standard).
Zinc Blue cr6+, Zinc Yellow cr6+, Trivalent zinc cr3+ color white, Trivalent zinc cr3+ color black,…

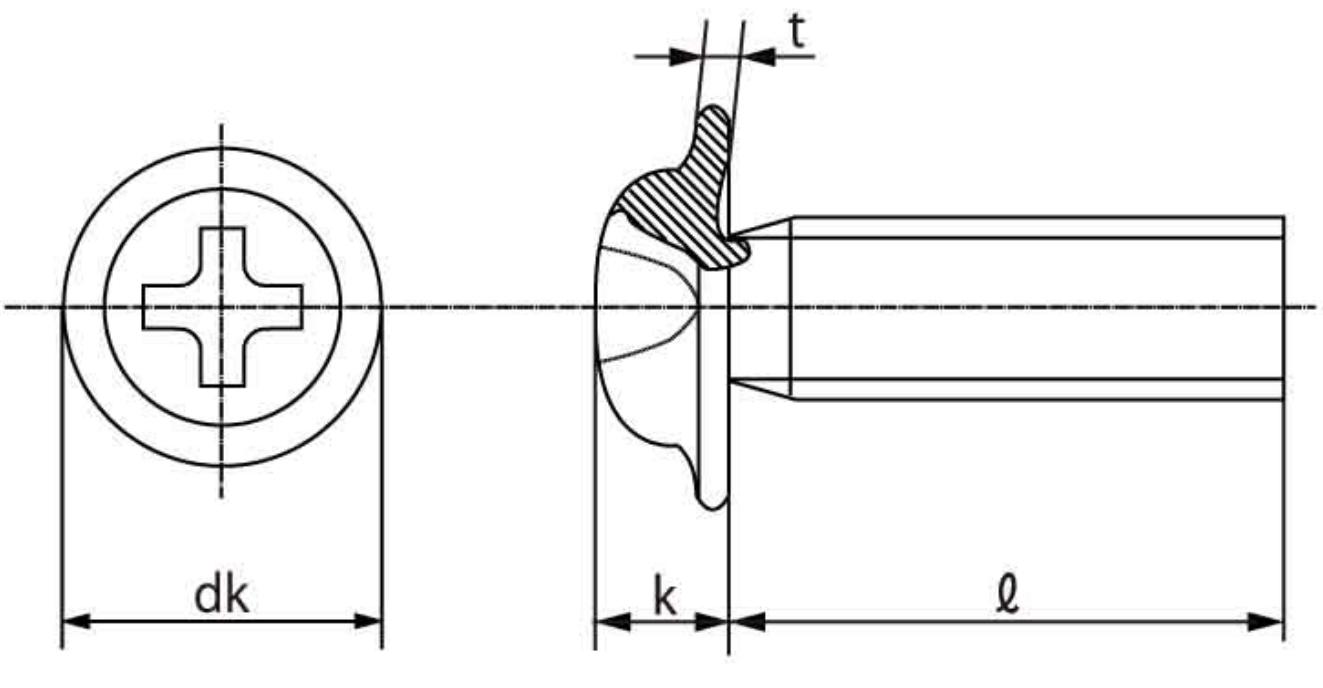

| Nominal Diameter | Pitch | dk | t | k | ||
|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Standard Dimension | Tolerance | ||
| 2 | 0.4 | 5.0 | 0 —0.4 | (0.5) | 1.70 | ±0.1 |
| 2.3 | 0.4 | 6.0 | (0.5) | 1.90 | ||
| 2.6 | 0.45 | 6.5 | (0.5) | 2.10 | ||
| 3 | 0.5 | 8.0 | 0 —0.5 | (0.6) | 2.50 | ±0.15 |
| 3.5 | 0.6 | 9.0 | (0.6) | 3.00 | ||
| 4 | 0.7 | 10.0 | (0.7) | 3.10 | ||
| 5 | 0.8 | 12.0 | (0.8) | 3.90 | ||
