SUNCO

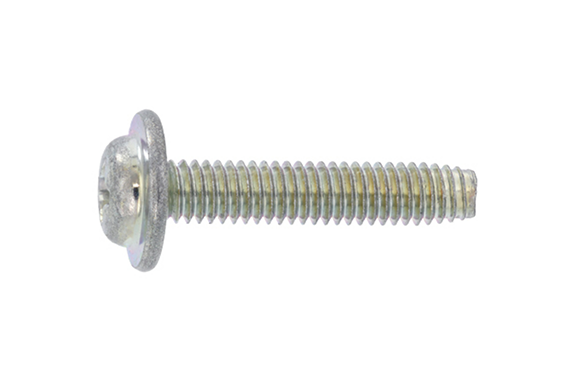

30-SPS0 SP Washer Head S Type
Model: 30-SPS0
Dia range:M3～M4
Length range:4～20
Iron (or standard).
Zinc Yellow cr6+, Trivalent zinc cr3+ color white, Trivalent zinc cr3+ color black,…

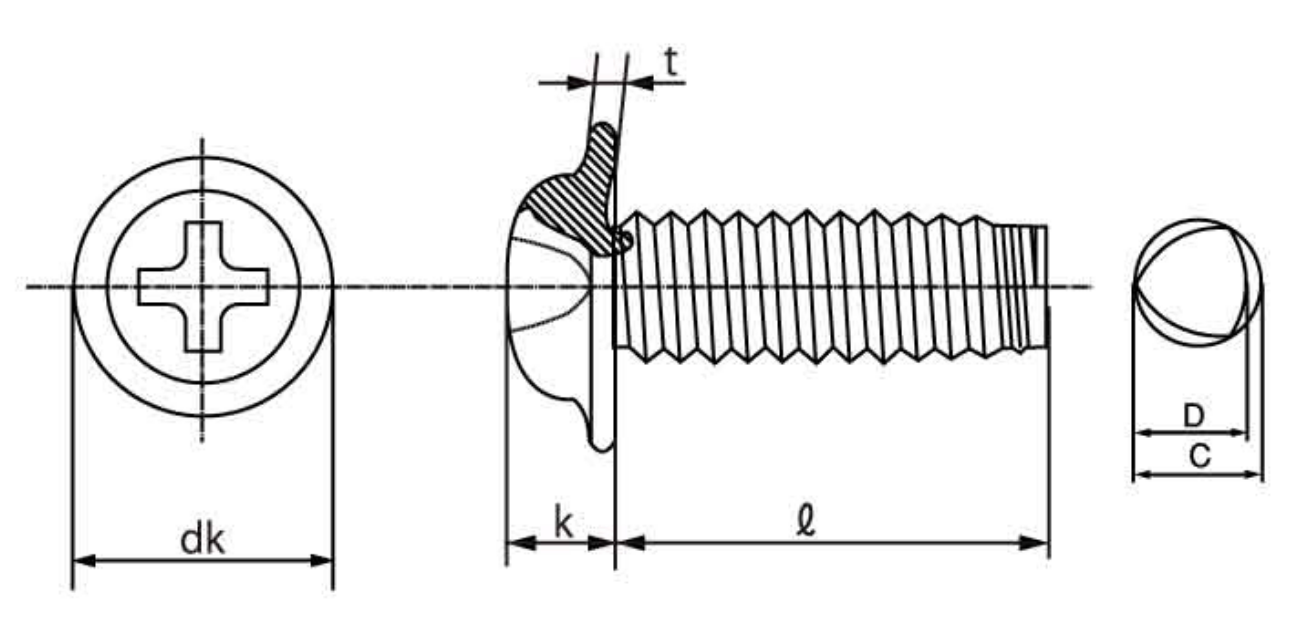

| Nominal Diameter | Pitch | dk | t | k | Screw Diameter | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Standard Dimension | Tolerance | C | D | ||||
| Maximum | Minimum | Maximum | Minimum | |||||||
| 2 | 0.4 | 5.0 | 0 —0.4 | (0.5) | 1.70 | ±0.1 | 2.03 | 1.95 | 1.95 | 1.87 |
| 2.3 | 0.4 | 6.0 | (0.5) | 1.90 | 2.33 | 2.25 | 2.25 | 2.17 | ||
| 2.6 | 0.45 | 6.5 | (0.5) | 2.10 | 2.64 | 2.56 | 2.55 | 2.47 | ||
| 3 | 0.5 | 8.0 | 0 —0.5 | (0.6) | 2.50 | ±0.15 | 3.04 | 2.96 | 2.94 | 2.86 |
| 3.5 | 0.6 | 9.0 | (0.6) | 3.00 | 3.55 | 3.47 | 3.43 | 3.35 | ||
| 4 | 0.7 | 10.0 | (0.7) | 3.10 | 4.06 | 3.98 | 3.92 | 3.84 | ||
| 5 | 0.8 | 12.0 | (0.8) | 3.90 | ±0.2 | 5.08 | 5.00 | 4.92 | 4.84 | |
