SUNCO
30-W000 Poly Wave Pan Head
Model: 30-W000
Dia range:M3～M4
Length range:6～8
Iron (or standard).
Zinc Yellow cr6+, Trivalent zinc cr3+ color white, Stainless coatcr+3.

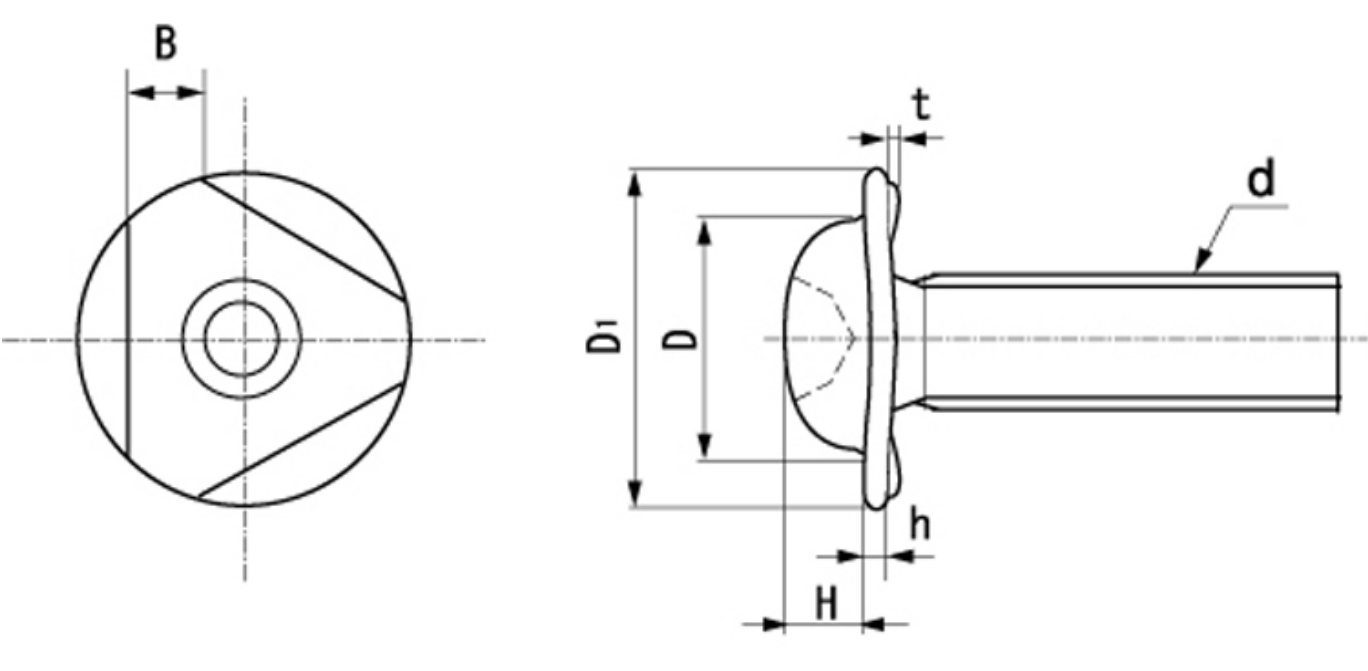

| Nominal Diameter | D Approx. | D1 | H | h | t Approx. | B Approx. | |||
|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Standard Dimension | Tolerance | ||||
| M3 | 5.5 | 8 | ±0.3 | 1.8 | ±0.15 | 0.6 | ±0.1 | 0.06 | 2.8 |
| M4 | 7 | 10 | ±0.4 | 2.3 | ±0.15 | 0.8 | ±0.1 | 0.08 | 3.5 |
