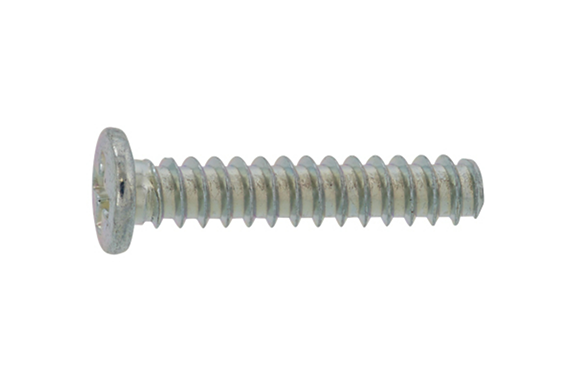

40-B200 # 0-2 (+) B Type Pan Head

Model: 40-B200
Dia range:M1.4~M2
Length range:2~10
Iron (or standard).
Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black, Nickel, Chrome.

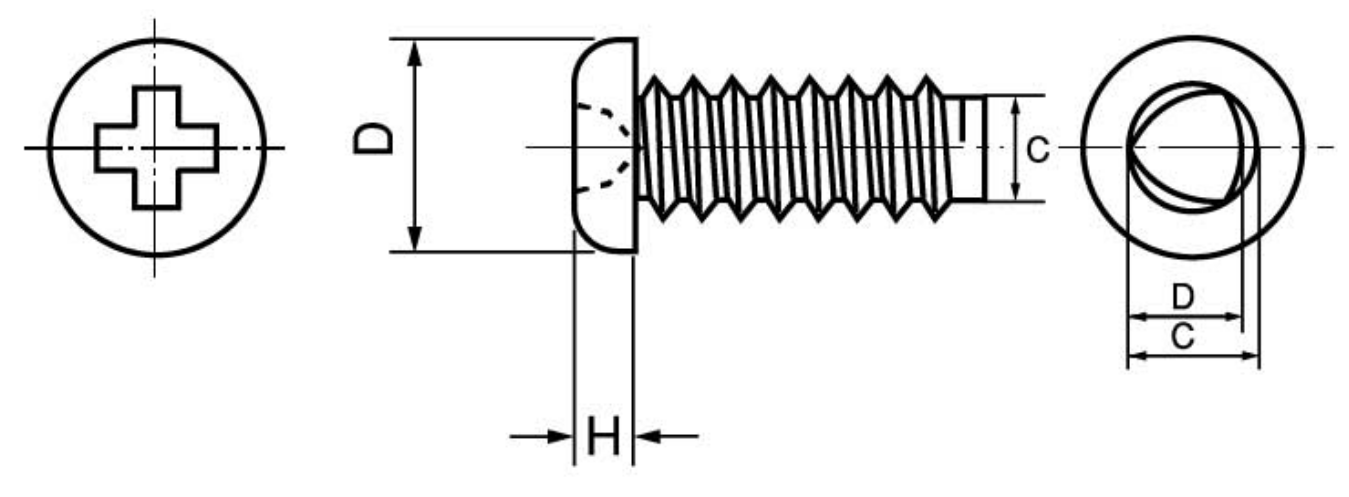

Type | Nominal diameter | Pitch P | Head diameter D | Head height H | Screw diameter | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
C | D | |||||||||||
Basic dimension | Max | Min | Basic dimension | Max | Min | Max | Min | Max | Min | |||
Type 2 | 1.4 | 0.45 | 2.5 | 2.55 | 2.40 | 0.50 | 0.55 | 0.45 | 1.44 | 1.37 | 1.38 | 1.31 |
1.6 | 0.5 | 2.8 | 2.85 | 2.66 | 0.50 | 0.55 | 0.45 | 1.64 | 1.57 | 1.57 | 1.50 | |
1.7 | 0.5 | 3.0 | 3.05 | 2.90 | 0.50 | 0.55 | 0.45 | 1.74 | 1.67 | 1.67 | 1.60 | |
2.0 | 0.6 | 3.5 | 3.55 | 3.30 | 0.60 | 0.68 | 0.52 | 2.04 | 1.95 | 1.96 | 1.87 |
