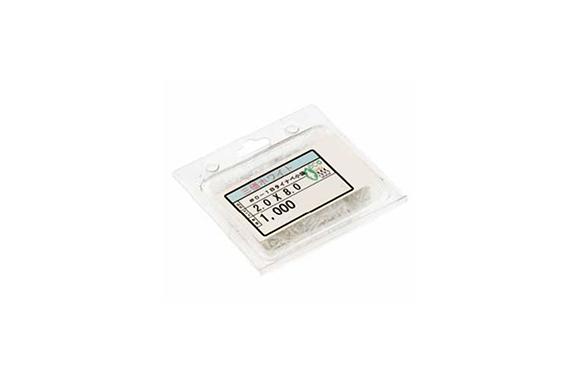

40-B500 # 0-1 (+) B Type Pan (Pack)
Model: 40-B500
Dia range:M1.2～M2
Length range:2.5～10
Iron (or standard), Stainless steel (303, 304,…).
Plain, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black,…

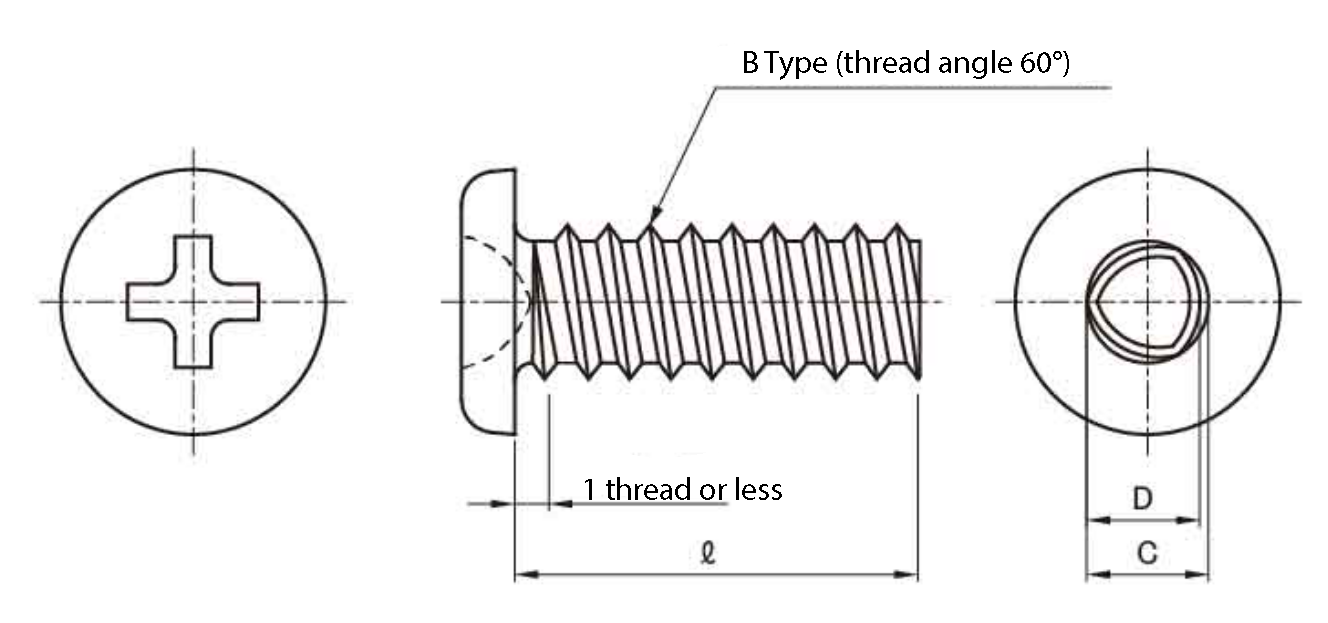

| Nominal thread size | Pitch | Thread Outer Diameter C | Thread Outer Diameter D | ||
|---|---|---|---|---|---|
| Max | Min | Max | Min | ||
| 1.2 | 0.40 | 1.23 | 1.17 | 1.17 | 1.11 |
| 1.4 | 0.45 | 1.43 | 1.37 | 1.37 | 1.31 |
| 1.6 | 0.50 | 1.63 | 1.57 | 1.56 | 1.50 |
| 17 | 0.50 | 1.73 | 1.67 | 1.66 | 1.60 |
| 2.0 | 0.60 | 2.04 | 1.96 | 1.96 | 1.88 |
| Nominal thread size | Head Outer Diameter | Tolerance | Head Height | Tolerance | Cross Recess Width Reference Value | Cross Recess Depth | |
|---|---|---|---|---|---|---|---|
| Max | Min | ||||||
| 1.2 | 1.80 | +0.05 -0.1 | 0.50 | +0.05 -0.05 | 1.30 | 0.39 | 0.26 |
| 1.4 | 2.00 | +0.05 -0.1 | 0.50 | +0.05 -0.05 | 1.55 | 0.74 | 0.51 |
| 1.6 | 2.40 | +0 -0.14 | 0.55 | +0 -0.1 | 1.65 | 0.84 | 0.56 |
| 1.7 | 2.50 | +0.05 -0.1 | 0.50 | +0.05 -0.05 | 1.70 | 0.89 | 0.61 |
| 20 | 3.00 | +0.05 -0.2 | 0.60 | +0.08 -0.08 | 2.00 | 1.21 | 0.91 |
