SUNCO

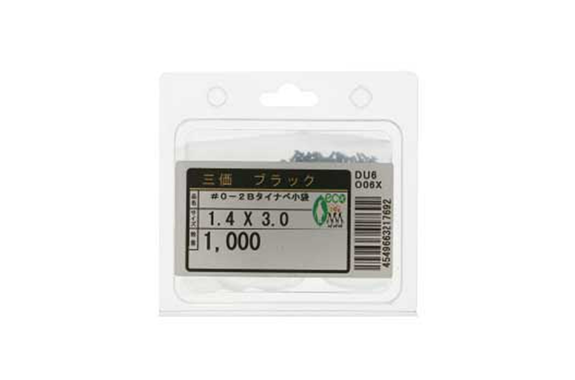

40-B600 # 0-2 (+) B Type Pan (Pack)
Model: 40-B600
Dia range:M1.4～M1.4
Length range:3～3
Iron (or standard).
Trivalent zinc cr3+ color black.

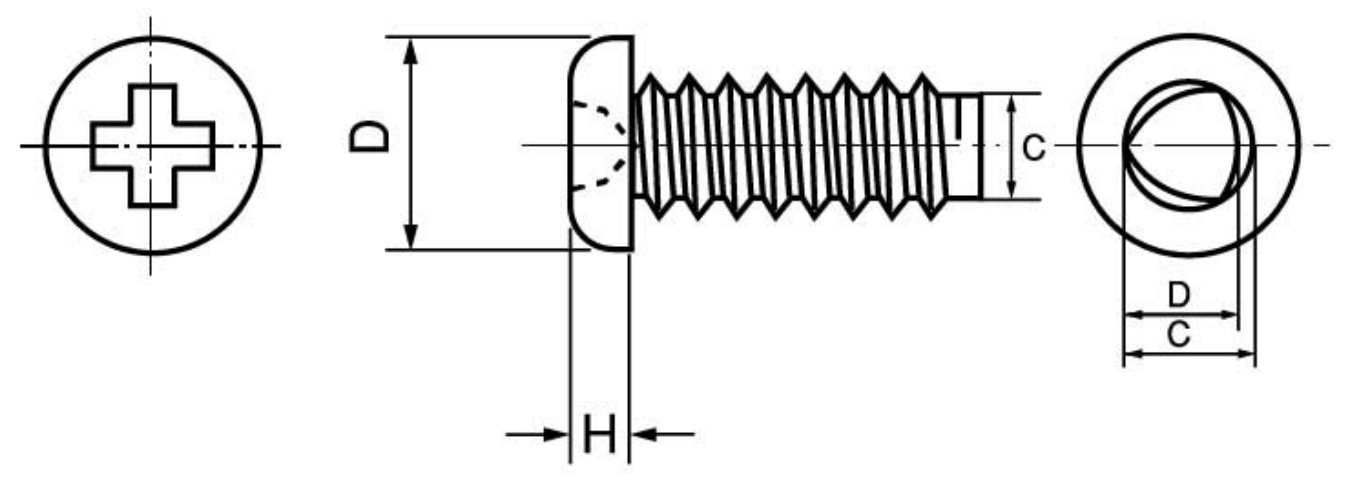

| Type | Nominal Diameter | Pitch | D | H | Screw Diameter | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | D | |||||||||||
| Standard Dimension | Maximum | Minimum | Standard Dimension | Maximum | Minimum | Maximum | Minimum | Maximum | Minimum | |||
| Type 2 | 1.4 | 0.45 | 2.5 | 2.55 | 2.40 | 0.50 | 0.55 | 0.45 | 1.44 | 1.37 | 1.38 | 1.31 |
