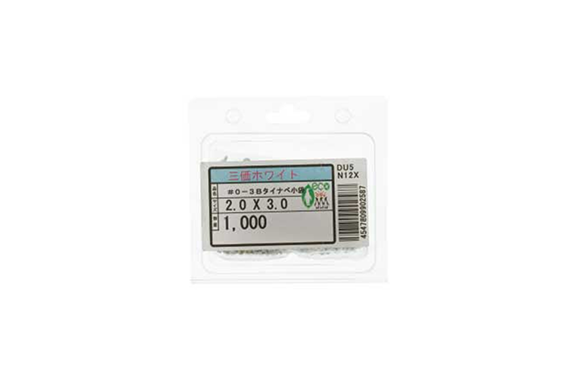

40-B700 # 0-3 (+) B Type Pan (Pack)
Model: 40-B700
Dia range:M1.4～M2
Length range:2.5～10
Iron (or standard), Stainless steel (303, 304,…).
Plain, Trivalent zinc cr+3 color black, Trivalent zinc cr+3 color white,…
| B Type | Pitch | Thread Outer Diameter C | Thread Outer Diameter D | ||
|---|---|---|---|---|---|
| Max | Min | Max | Min | ||
| 1.2 | 0.40 | 1.23 | 1.17 | 1.17 | 1.11 |
| 1.4 | 0.45 | 1.43 | 1.37 | 1.37 | 1.31 |
| 1.6 | 0.50 | 1.63 | 1.57 | 1.56 | 1.50 |
| 1.7 | 0.50 | 1.73 | 1.67 | 1.66 | 1.60 |
| 2.0 | 0.60 | 2.04 | 1.96 | 1.96 | 1.88 |
| 2.3 | 0.80 | 2.33 | 2.25 | 2.25 | 2.17 |
| 2.5 | 0.90 | 2.54 | 2.46 | 2.45 | 2.37 |
| 2.6 | 0.90 | 2.63 | 2.55 | 2.54 | 2.46 |
#0-3 Pan Head Standard
| Head Outer Diameter D | Tolerance | Head Height H | Tolerance | Cross Recess Width M Reference Value | Cross Recess Depth Q Dimension | ||
|---|---|---|---|---|---|---|---|
| Max | Min | ||||||
| 1.2 | 2.30 | +0.05 -0.1 | 0.70 | +0.05 -0.05 | 1.50 | 0.58 | 0.48 |
| 1.4 | 250 | +0.05 -0.1 | 0.80 | +0.05 -0.05 | 1.65 | 0.84 | 0.56 |
| 1.6 | 280 | +0 -0.14 | 0.85 | +0 -0.1 | 1.80 | 1.00 | 0.71 |
| 1.7 | 3.00 | +0.05 -0.1 | 0.90 | +0.05 -0.05 | 1.90 | 1.10 | 0.81 |
| 2.0 | 350 | +0.05 -0.2 | 1.00 | +0.08 -0.08 | 2.10 | 1.31 | 1.01 |
| 2.3 | 4.00 | +0.05 -0.2 | 1.10 | +0.08 -0.3 | 2.20 | 1.41 | 1.06 |
| 2.5 | 4.30 | +0 -0.25 | 1.30 | +0 -0.14 | 2.20 | 1.41 | 1.06 |
| 2.6 | 450 | +0.05 -0.2 | 1.20 | +0.08 -0.08 | 2.20 | 1.41 | 1.06 |
