40-P100 # 0-1 (+) P Type Pan Head
Model: 40-P100
Dia range:M1.4～M2.6
Length range:2.5～10
Iron (or standard), Stainless steel (303, 304,…).
Plain, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…

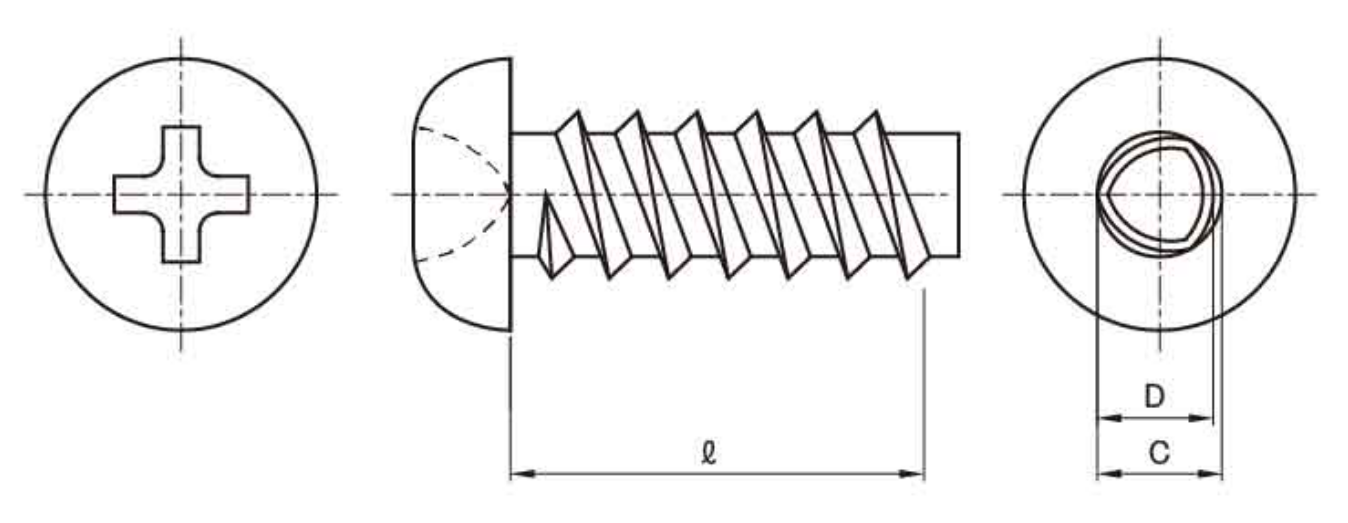

| P Type | Pitch | Thread Outer Diameter C | Thread Outer Diameter D | ||
|---|---|---|---|---|---|
| Max | Min | Max | Min | ||
| 1.4 | 0.50 | 1.46 | 1.40 | 1.40 | 1.34 |
| 1.6 | 0.64 | 1.66 | 1.60 | 1.59 | 1.53 |
| 1.7 | 0.64 | 1.76 | 1.70 | 1.69 | 1.63 |
| 2.0 | 0.79 | 2.12 | 2.02 | 2.04 | 1.94 |
| 2.5 | 1.06 | 2.63 | 2.53 | 2.54 | 2.44 |
| Head Outer Diameter | Tolerance | Head Height | Tolerance | Cross Recess Width Reference Value | Cross Recess Depth | ||
|---|---|---|---|---|---|---|---|
| Max | MIn | ||||||
| 1.4 | 2.00 | +0.05 -0.1 | 0.50 | +0.05 -0.05 | 1.55 | 0.74 | 0.51 |
| 1.6 | 2.40 | +0 -0.14 | 0.55 | +0 -0.1 | 1.65 | 0.84 | 0.56 |
| 1.7 | 2.50 | +0.05 -0.1 | 0.50 | +0.05 -0.05 | 1.70 | 0.89 | 0.61 |
| 2,0 | 3.00 | +0.05 -0.2 | 0.60 | +0.08 -0.08 | 2.00 | 1,21 | 0.91 |
| 2.3 | 3.50 | +0.05 -0.2 | 0.70 | +0.08 -0.08 | 2.20 | 1.41 | 1.06 |
| 2.5 | 3.80 | +0 -0.25 | 0.90 | +0 -0.14 | 2.20 | 1.41 | 1.06 |
| 2.6 | 4.00 | +0.05 -0.2 | 0.80 | +0.08 -0.08 | 2.20 | 1.41 | 1.06 |
