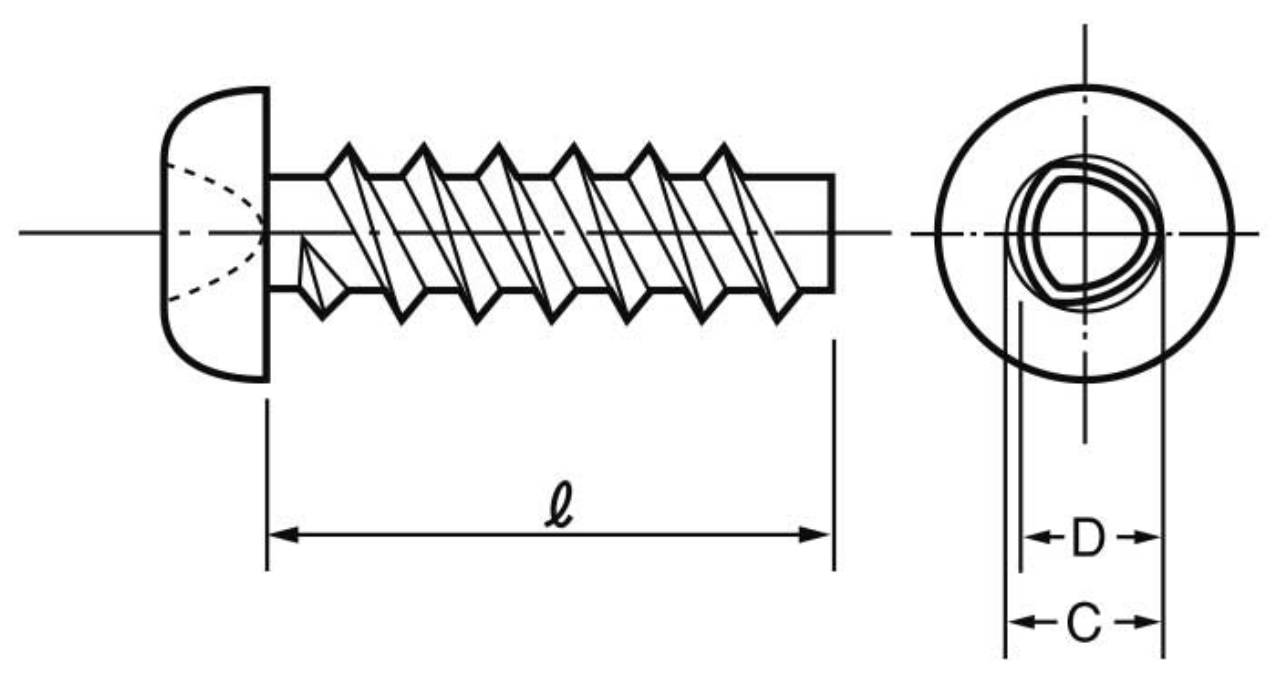

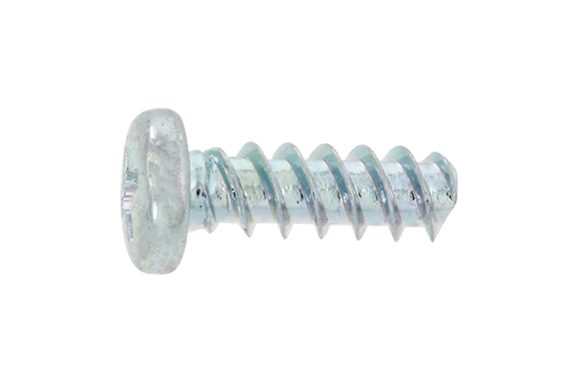

40-P300 # 0-3 (+) P Type Pan Head
Model: 40-P300
Dia range:M1.4～M2
Length range:3～8
Iron (or standard), Stainless steel (303, 304,…).
Plain, Zinc yellow cr6+, Trivalent zinc cr+3 color white,…
| P Type | Pitch | Screw Outer Diameter C | Screw Outer Diameter D | ||
|---|---|---|---|---|---|
| Max | Min | Max | Min | ||
| 1.4 | 0.50 | 1.46 | 1.40 | 1.40 | 1.34 |
| 1.6 | 0.64 | 1.66 | 1.60 | 1.59 | 1.53 |
| 1.7 | 0.64 | 1.76 | 1.70 | 1.69 | 1.63 |
| 2.0 | 0.79 | 2.12 | 2.02 | 2.04 | 1.94 |
| 2.5 | 1.06 | 2.63 | 2.53 | 2.54 | 2.44 |
#0–3 Pan Head Standards
| Head Outer Diameter | Tolerance | Head Height | Tolerance | Cross Slot Width | Cross Slot Depth | ||
|---|---|---|---|---|---|---|---|
| Max | Min | ||||||
| 1.4 | 2.50 | +0.05 -0.1 | 0.80 | +0.05 -0.05 | 1.65 | 0.84 | 0.56 |
| 1.6 | 2.80 | +0 -0.14 | 0.85 | +0 -0.1 | 1.80 | 1.00 | 0.71 |
| 1.7 | 3.00 | +0.05 -0.1 | 0.90 | +0.05 -0.05 | 1.90 | 1.10 | 0.81 |
| 2.0 | 3.50 | +0.05 -0.2 | 1.00 | +0.08 -0.08 | 2.10 | 1.31 | 1.01 |
| 2.3 | 4.00 | +0.05 -0.2 | 1.10 | +0.08 -0.08 | 2.20 | 1.41 | 1.06 |
| 2.5 | 4.30 | +0 -0.25 | 1.30 | +0 -0.14 | 2.20 | 1.41 | 1.06 |
| 2.6 | 4.50 | +0.05 -0.2 | 1.20 | +0.08 -0.08 | 2.20 | 1.41 | 1.06 |
