SUNCO

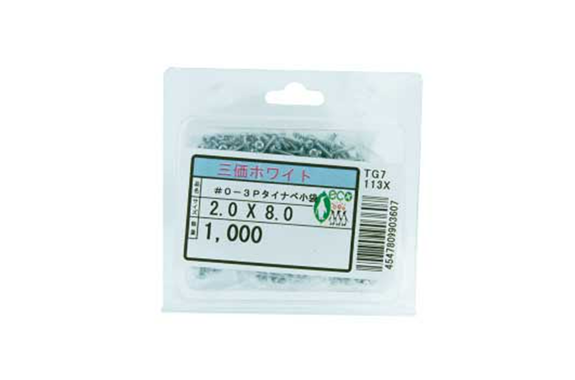

40-P700 # 0-3 (+) P Type Pan (Pack)
Model: 40-P700
Dia range:M1.4～M2
Length range:3～8
Iron (or standard), Stainless steel (303, 304,…).
Plain, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black, Nickel, Chrome, Zinc black.
| P-Type | Pitch | Thread outer diameter C | Thread outer diameter D | ||
|---|---|---|---|---|---|
| MAX | MIN | MAX | MIN | ||
| 1.4 | 0.50 | 1.46 | 1.40 | 1.40 | 1.34 |
| 1.6 | 0.64 | 1.66 | 1.60 | 1.59 | 1.53 |
| 1.7 | 0.64 | 1.76 | 1.70 | 1.69 | 1.63 |
| 2.0 | 0.79 | 2.12 | 2.02 | 2.04 | 1.94 |
| 2.5 | 1.06 | 2.63 | 2.53 | 2.54 | 2.44 |
#0-3 Pan-head screw specifications
| Head outer diameter D | Tolerance | Head height H | Tolerance | Cross-recess width M dimension | Cross-recess depth Q dimension | ||
|---|---|---|---|---|---|---|---|
| MAX | MIN | ||||||
| 1.0 | 2.30 | +0.05 -0.1 | 0.70 | +0.05 -0.05 | 1.50 | 0.58 | 0.48 |
| 1.2 | 2.30 | +0.05 -0.1 | 0.70 | +0.05 -0.05 | 1.50 | 0.58 | 0.48 |
| 1.4 | 2.50 | +0.05 -0.1 | 0.80 | +0.05 -0.05 | 1.65 | 0.84 | 0.56 |
| 1.6 | 2.80 | +0 -0.14 | 0.85 | +0 -0.1 | 1.80 | 1.00 | 0.71 |
| 1.7 | 3.00 | +0.05 -0.1 | 0.90 | +0.05 -0.05 | 1.90 | 1.10 | 0.81 |
| 2.0 | 3.50 | +0.05 -0.2 | 1.00 | +0.08 -0.08 | 2.10 | 1.31 | 1.01 |
| 2.3 | 4.00 | +0.05 -0.2 | 1.10 | +0.08 -0.08 | 2.20 | 1.41 | 1.06 |
| 2.5 | 4.30 | +0 -0.25 | 1.30 | +0 -0.14 | 2.20 | 1.41 | 1.06 |
| 2.6 | 4.50 | +0.05 -0.2 | 1.20 | +0.08 -0.08 | 2.20 | 1.41 | 1.06 |
