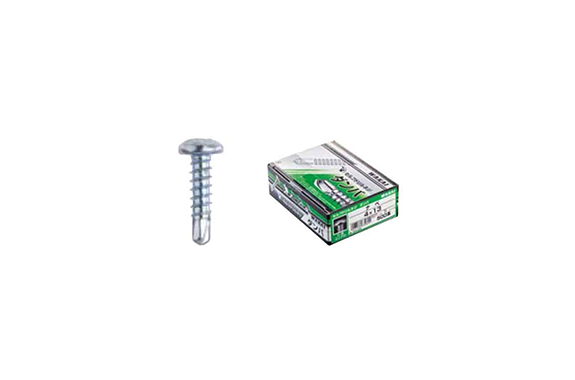

50-4500 Pan Head (DANBA (Slim Box))
Model: 50-4500
Dia range:M4～M4
Length range:13～30
Iron (or standard), SUS410.
Plain, Trivalent zinc cr+3 color white.
Iron-made (Unit: mm)

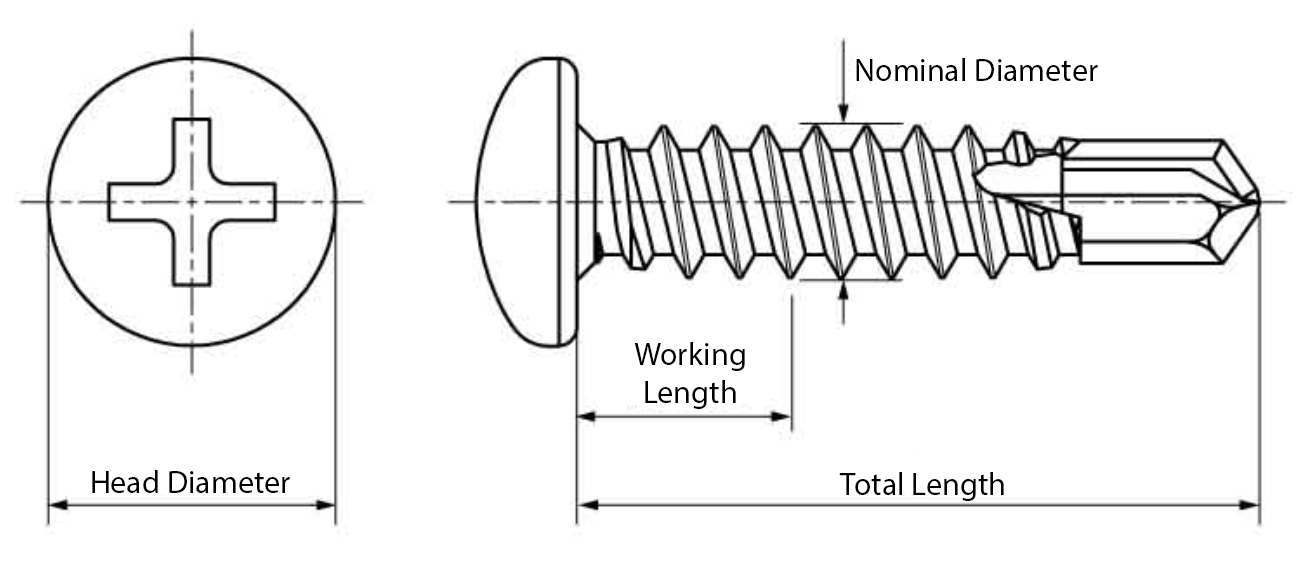

| Product Code | Nominal Diameter × Total Length (Thread Length) | Head Diameter | Working Length | Applicable Plate Thickness |
|---|---|---|---|---|
| 684130N | 4 × 13 (13) | 4 | 4 | 1.2~3.2 |
| 684160N | 4 × 16 (16) | 7 | 7 | 1.2~3.2 |
| 684190N | 4 × 19 (19) | 8.2 | 10 | 1.2~3.2 |
| 684250N | 4 × 25 (25) | 16 | 16 | 1.2~3.2 |
| 684300N | 4 × 30 (30) | 21 | 21 | 1.2~3.2 |
Stainless Steel-made (Unit: mm)
| Product Code | Nominal Diameter × Total Length (Thread Length) | Head Diameter | Working Length | Applicable Plate Thickness |
|---|---|---|---|---|
| 68413NP | 4 × 13 (13) | 4 | 4 | 1.2~3.2 |
| 68416NP | 4 × 16 (16) | 7 | 7 | 1.2~3.2 |
| 68419NP | 4 × 19 (19) | 8.2 | 10 | 1.2~3.2 |
| 68425NP | 4 × 25 (25) | 16 | 16 | 1.2~3.2 |
| 68430NP | 4 × 30 (30) | 21 | 21 | 1.2~3.2 |
