SUNCO

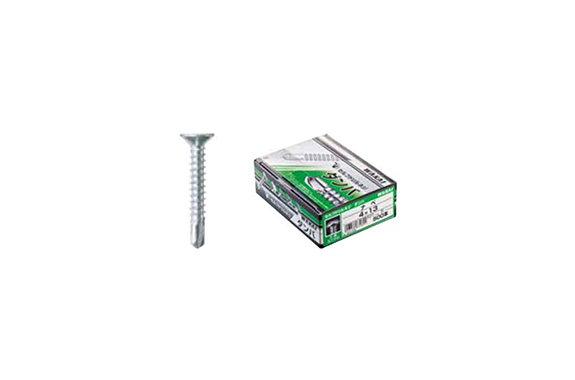

50-4501 Flat Head (DANBA (Slim Box))
Model: 50-4501
Dia range:M4～M4
Length range:16～50
Iron (or standard), SUS410.
Plain, Trivalent zinc cr+3 color white.
Iron-made (Unit: mm)

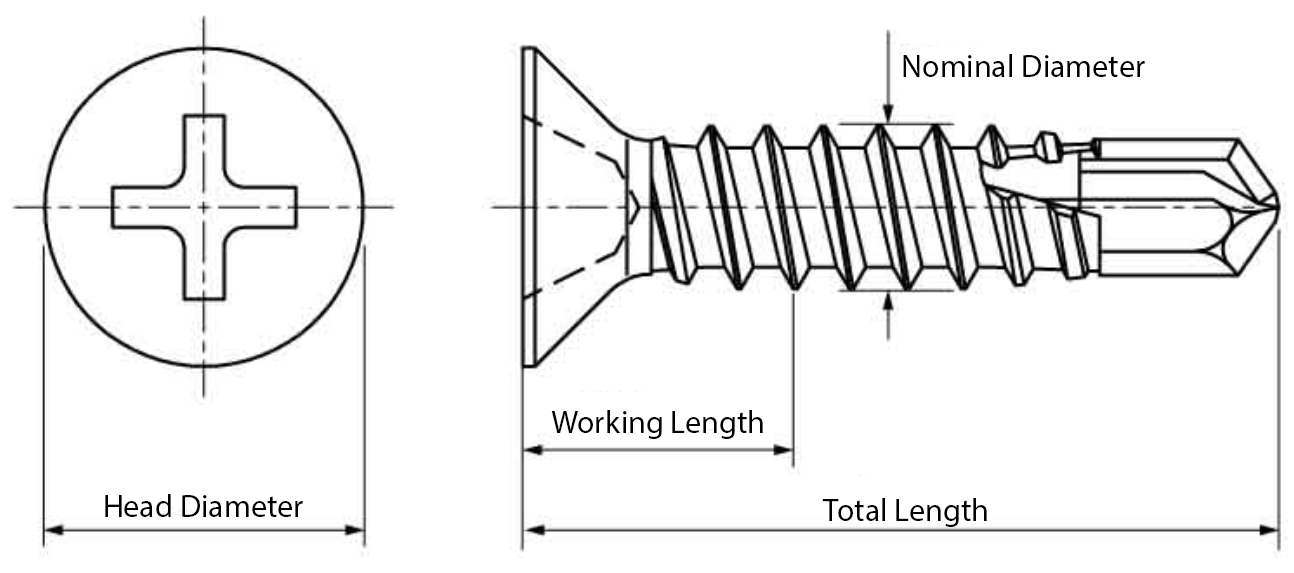

| Product Code | Nominal Diameter × Total Length (Thread Length) | Head Diameter | Working Length | Applicable Plate Thickness |
|---|---|---|---|---|
| 684160F | 4 × 16 (13) | 8.0 | 6 | 1.2~3.2 |
| 684190F | 4 × 19 (16) | 8.0 | 9 | 1.2~3.2 |
| 684250F | 4 × 25 (22) | 8.0 | 15 | 1.2~3.2 |
| 684430F | 4 × 30 (26) | 8.0 | 20 | 1.2~3.2 |
| 684350F | 4 × 35 (31) | 8.0 | 25 | 1.2~3.2 |
| 684400F | 4 × 40 (36) | 8.0 | 30 | 1.2~3.2 |
| 684450F | 4 × 45 (41) | 8.0 | 35 | 1.2~3.2 |
| 684500F | 4 × 50 (46) | 8.0 | 40 | 1.2~3.2 |
Stainless Steel-made (Unit: mm)
| Product Code | Nominal Diameter × Total Length (Thread Length) | Head Diameter | Working Length | Applicable Plate Thickness |
|---|---|---|---|---|
| 68416FP | 4 × 16 (13) | 8.0 | 6 | 1.2~3.2 |
| 68419FP | 4 × 19 (16) | 8.0 | 9 | 1.2~3.2 |
| 68425FP | 4 × 25 (22) | 8.0 | 15 | 1.2~3.2 |
| 68430FP | 4 × 30 (26) | 8.0 | 20 | 1.2~3.2 |
| 68440FP | 4 × 40 (36) | 8.0 | 30 | 1.2~3.2 |
