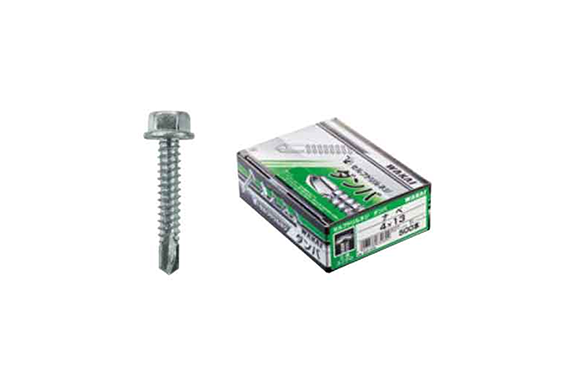

50-4502 Hex Head (DANBA (Slim Box))
Model: 50-4502
Dia range:M5～M6
Length range:19～35
Iron (or standard).
Trivalent zinc cr+3 color white.
Unit: mm

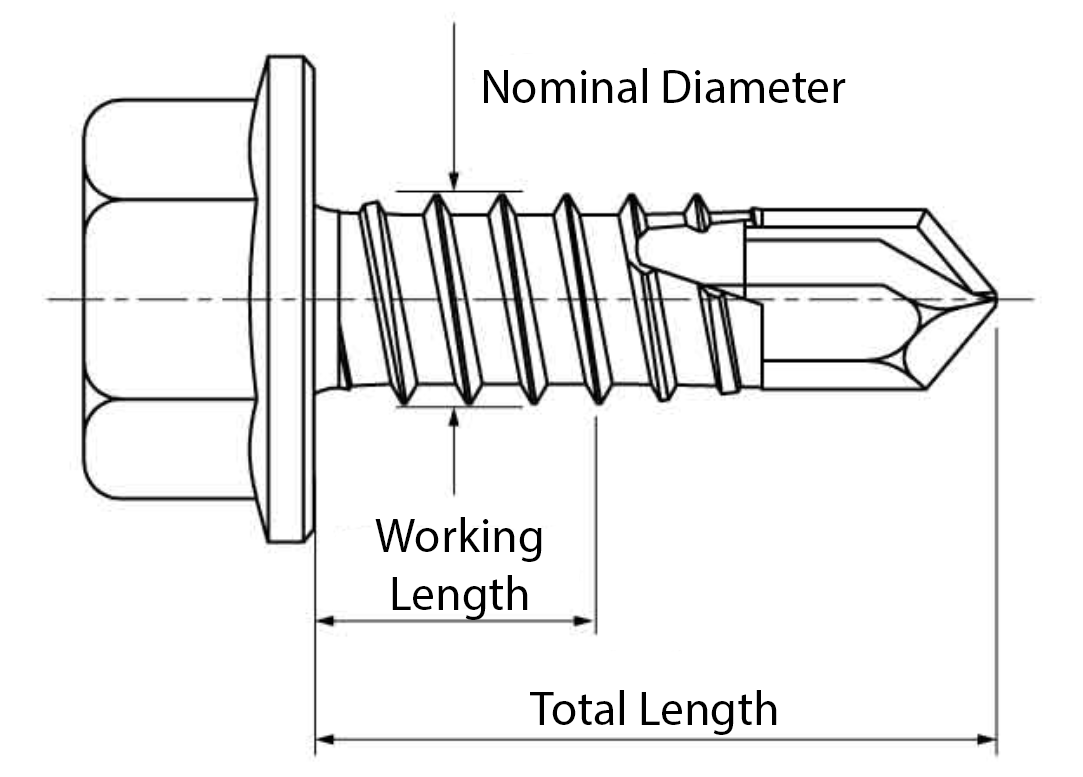

| Product Code | Nominal Size × Overall Length (Thread Length) | Effective Length | Applicable Plate Thickness |
|---|---|---|---|
| 685190H | 5 × 19 (19) | 7 | 1.6 – 4.5 |
| 685250H | 5 × 25 (25) | 13 | |
| 686250H | 6 × 25 (25) | 11 | 2.3 – 6.0 |
| 686350H | 6 × 35 (35) | 21 |
