SUNCO

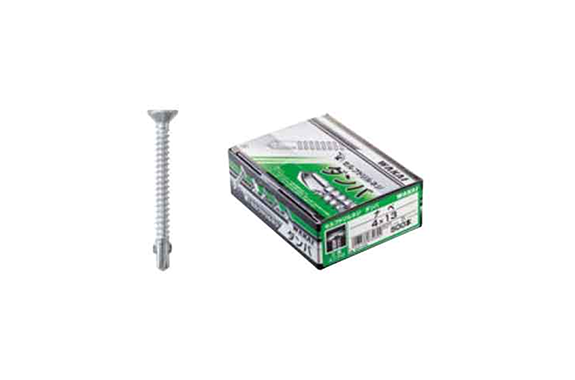

50-4506 Flexi Head (Reamea (Slim Box))
Model: 50-4506
Dia range:M4～M5
Length range:28～60
Iron (or standard).
Trivalent zinc cr+3 color white.
Unit: mm

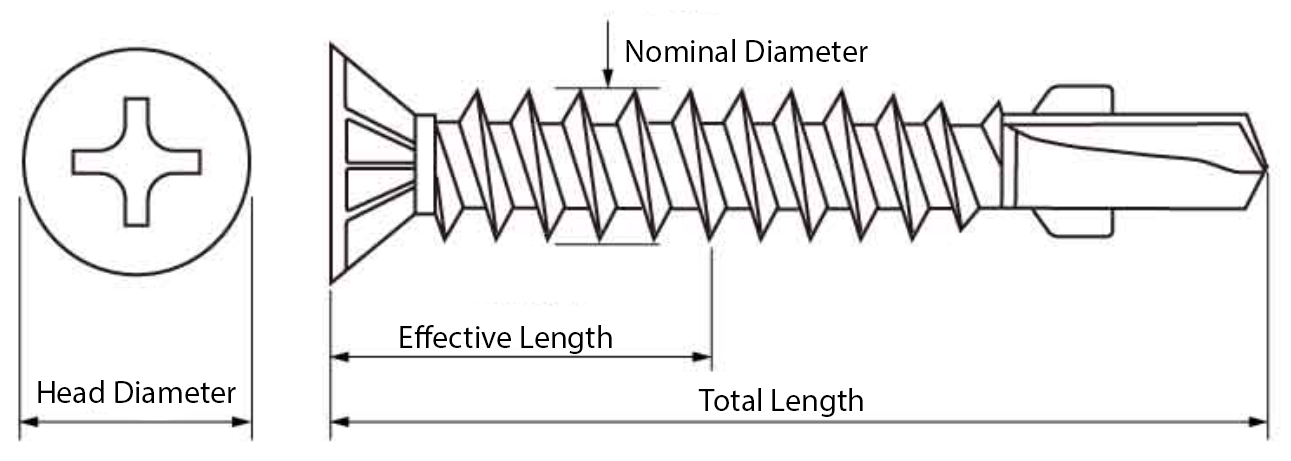

| Product Code | Thread Type | Nominal Size × Overall Length (Thread Length) | Head Diameter | Effective Length | Applicable Plate Thickness |
|---|---|---|---|---|---|
| 684280R | Fully Threaded | 4 × 28 (24) | 8.0 | 16 | 1.2 – 3.1 |
| 684320R | 4 × 32 (27) | 20 | |||
| 684400R | 4 × 40 (35) | 28 | |||
| 684450R | 4 × 45 (39) | 33 | |||
| 685600R | Half Threaded | 5 × 60 (42) | 9.8 | 47 | 1.6 – 4.5 |
