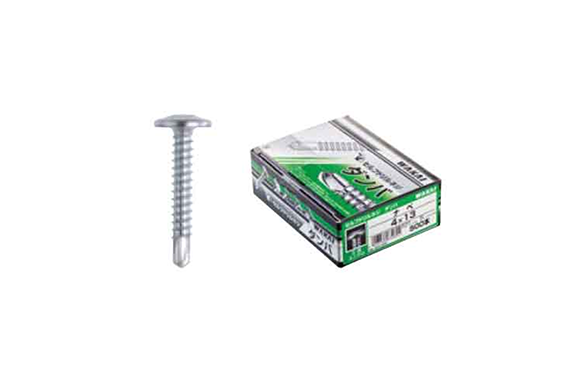

50-4511 Thin Washer Head (Slim Box)
Model: 50-4511
Dia range:M4～M4
Length range:13～25
Iron (or standard).
Trivalent zinc cr+3 color white.
Unit: mm

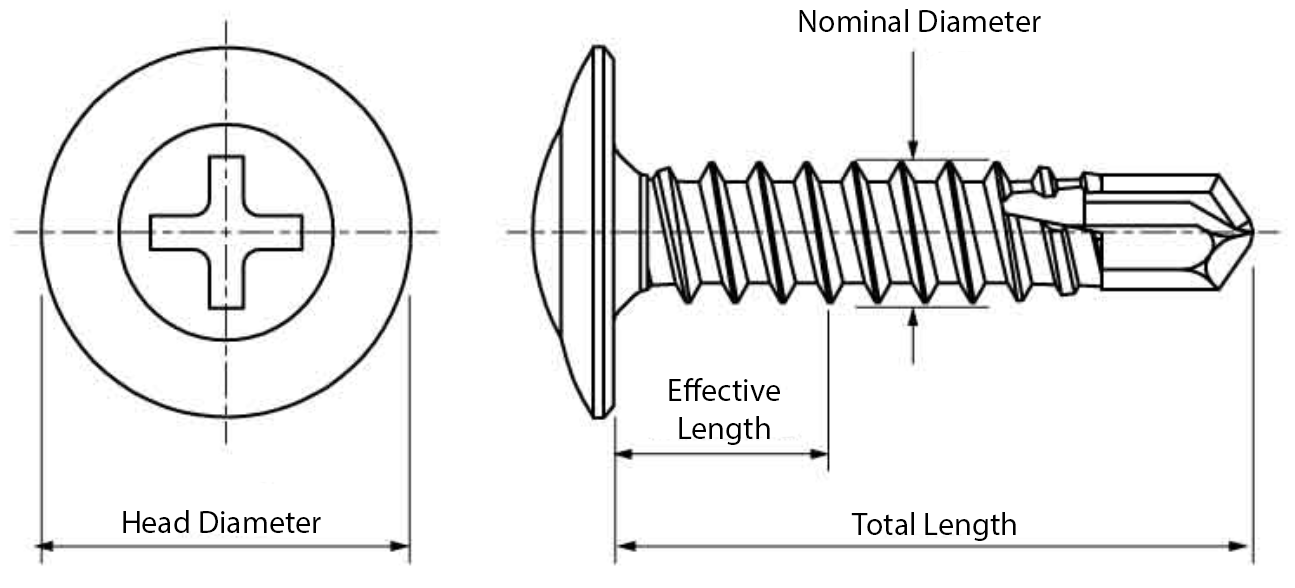

| Product Code | Nominal Size × Overall Length (Thread Length) | Head Diameter | Effective Length | Applicable Plate Thickness |
|---|---|---|---|---|
| 684130W | 4 × 13 (13) | 10.6 | 4 | 1.2 – 3.2 |
| 684160W | 4 × 16 (16) | 7 | ||
| 684190W | 4 × 19 (19) | 10 | ||
| 684250W | 4 × 25 (25) | 16 |
