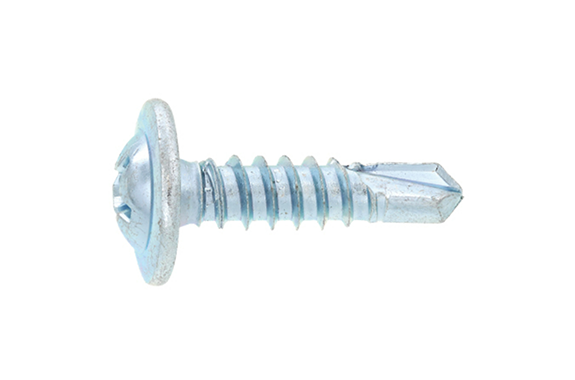

50-C010 Thin Washer Head (KM)
Model: 50-C010
Dia range:M4～M5
Length range:13～135
Iron (or standard), SUS410.
Plain, Trivalent zinc cr+3 color white.
| Size (d × L) | Head Diameter D | Height H | Thread | Applicable Thickness |
|---|---|---|---|---|
| 4X13 | 10.5 | 2.5 | Full Thread | up to 2. 3mm |
| 4X16 | up to 3. 2mm | |||
| 4X19 | ||||
| 4X25 | ||||
| 5X13 | 12.0 | 3.3 | Full Thread | up to 2. 3mm |
| 5X16 | up to 3. 2mm | |||
| 5X22 | ||||
| *5X35 | ||||
| 5X40 | ||||
| *5X45 | ||||
| 5X50 | ||||
| *5X60 | 50 | |||
| *5X70 | ||||
| 5X80 | ||||
| 5X100 |
*For SUS410, the height is 3.0.
