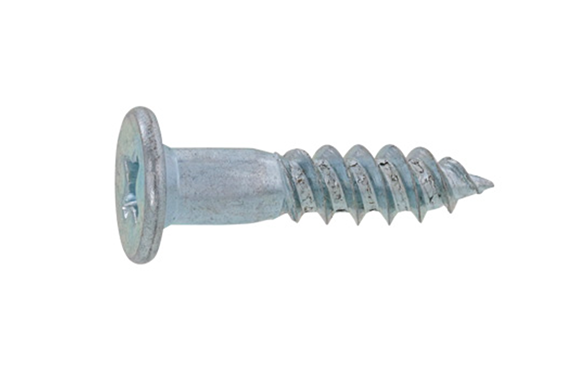

60-A000 Slim Head (Heat (2 Thread))
Model: 60-A000
Dia range:M2.7～M5.1
Length range:13～45
Iron (or standard).
Zinc yellow cr6+, Zinc blue cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black,…

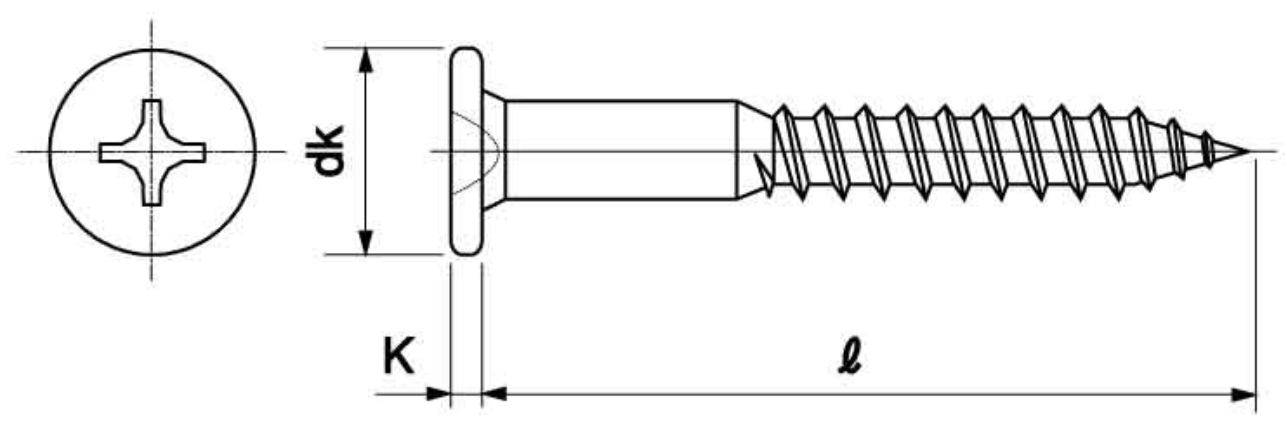

| Nominal Diameter | Cross Hole Number | Head Diameter | Head Height | ||
|---|---|---|---|---|---|
| dk | K | ||||
| 2.7 | 2 | 5.7 | 1.0 | ||
| 3.1 | 2 | 6.0 | 1.0 | ||
| 3.5 | 2 | 6.7 | 1.0 | ||
| 3.8 | 2 | 7.3 | 1.0 | ||
| 4.1 | 2 | 8.0 | 1.0 | ||
| 5.1 | 2 | 9.8 | 1.0 | ||
