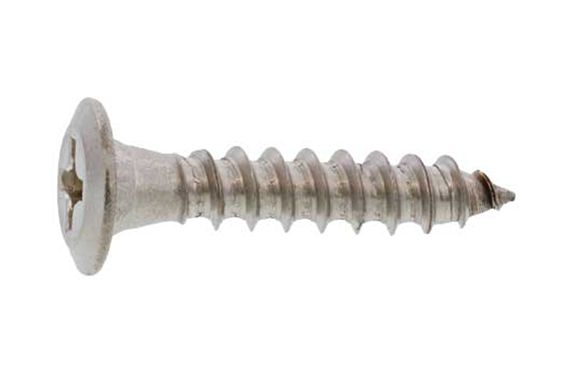

60-A300 + Slim Head Wood Screw
Model: 60-A300
Dia range:M3.1～M3.8
Length range:16～38
Stainless Steel (303, 304, XM7,…).
Plain, GB (brown bronze), BK (SUS black oxide), Painted White, Painted Black.

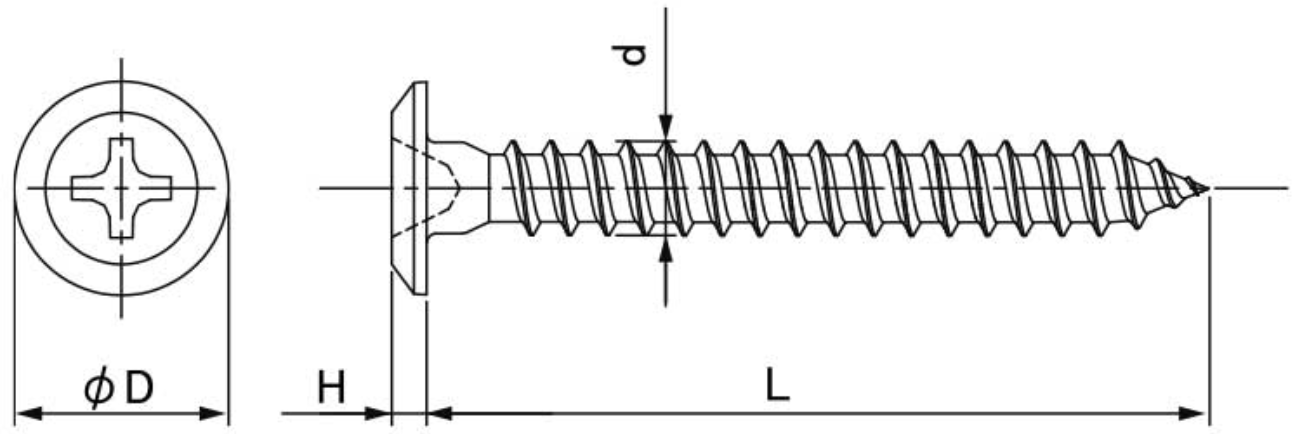

| Nominal Diameter | Cross Hole Number | d | D | H | |||
|---|---|---|---|---|---|---|---|
| Standard Size | Tolerance | Standard Size | Tolerance | Standard Size | Tolerance | ||
| 3.1 | 2 | 3.1 | ±0.1 | 6.9 | ±0.15 | 1.2 | 0 |
| 3.5 | 2 | 3.5 | ±0.1 | 7.2 | ±0.2 | 1.2 | -0.2 |
| 3.8 | 2 | 3.8 | ±0.1 | 7.8 | ±0.2 | 1.2 | -0.2 |
