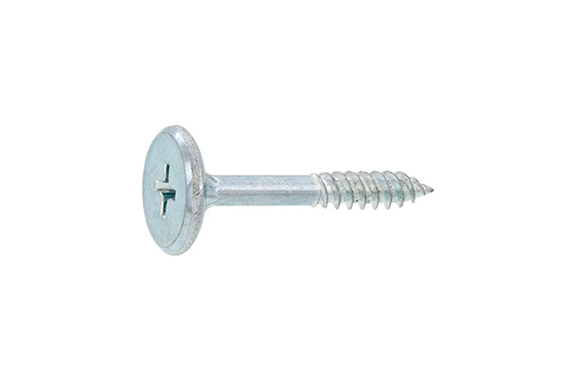

61-0240 JB-AW (Joint-Tapping)
Model: 61-0240
Iron (or standard).
Plain, Zinc yellow cr6+.

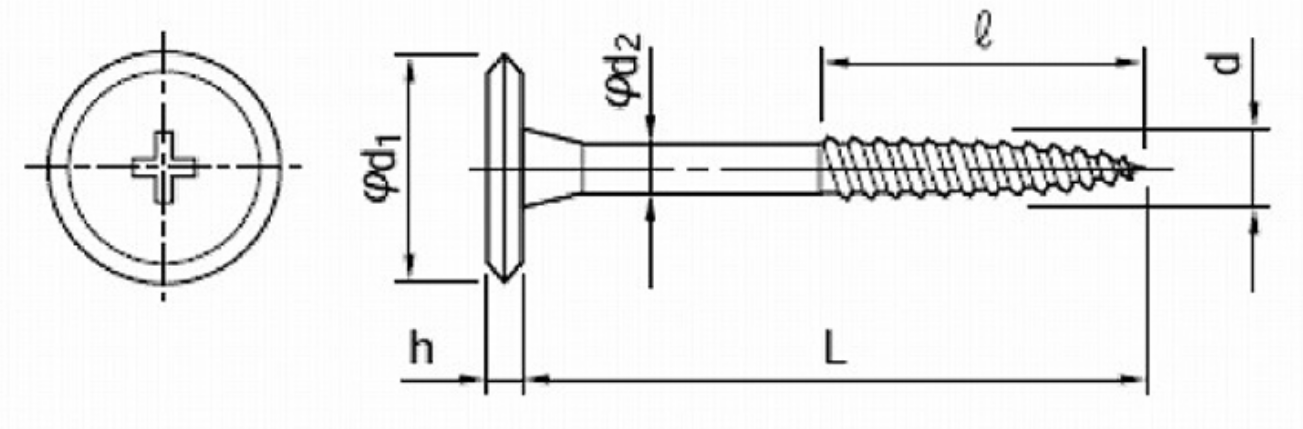

| Thread Size-L | L | ℓ | h | φ d 1 | φ d2 |
|---|---|---|---|---|---|
| 4×28 | 28.0 | 13.0 | 2.1 | 13.0 | 3.0 |
| 4×36 | 36.0 | 18.0 | |||
| 4×50 | 50.0 | 35.0 | |||
| 5×55 | 55.0 | 38.0 | 2.6 | 13.0 | 4.0 |
Model: 61-0240
Iron (or standard).
Plain, Zinc yellow cr6+.
| Thread Size-L | L | ℓ | h | φ d 1 | φ d2 |
|---|---|---|---|---|---|
| 4×28 | 28.0 | 13.0 | 2.1 | 13.0 | 3.0 |
| 4×36 | 36.0 | 18.0 | |||
| 4×50 | 50.0 | 35.0 | |||
| 5×55 | 55.0 | 38.0 | 2.6 | 13.0 | 4.0 |
